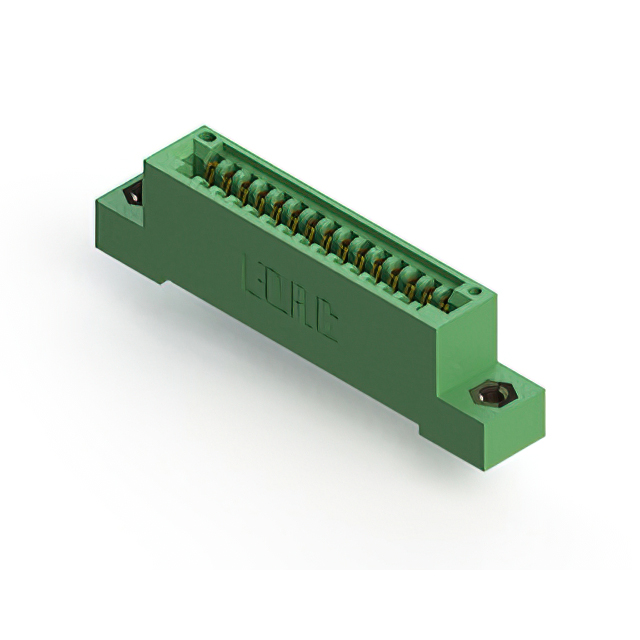

845-015-523-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 15POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 845-015-523-108
- Description：CONN EDGE SINGLE FML 15POS 0.100
- Series：845
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：15
- Number of Positions：15
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 845-015-523-108
Edgeboard Connectors Overview
The EDAC Inc. 845-015-523-108 is a standard card edge connector from the 845 High Temp series, designed for single-edge board applications. It features 15 positions with a 0.100 inch (2.54 mm) contact spacing. The connector utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) insulator. It supports a current rating of 3 A and operates within a temperature range of -40°C to +125°C. The unit provides an insulation resistance of 5 GOhms and is configured as a single-row female connector.
Edgeboard Connectors Feature Summary
- High-temperature rated construction suitable for demanding thermal environments
- Gold-plated contacts ensure reliable signal transmission and corrosion resistance
- Single-edge design accommodates specific PCB insertion requirements
Edgeboard Connectors Applications
- Industrial control systems requiring high-temperature stability
- Military and aerospace electronic assemblies
- Automotive electronics modules
Edgeboard Connectors Procurement Notes
Verify the exact suffix configuration against official EDAC documentation to confirm pin count, termination style, and plating specifications. Ensure compatibility with target PCB thickness and mating card dimensions before procurement. Confirm availability status as distribution channels may vary.
Edgeboard Connectors Selection Notes
Select this component when a single-row, single-edge connector with high-temperature capability is required. Verify that the 15-position layout matches the circuit design. Ensure the panel mount style and wire wrap or solder pin termination align with the assembly process.
Edgeboard Connectors Part Context
This part belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series offers various position counts and termination options, maintaining consistent electrical performance across different configurations for robust industrial and defense applications.
Edgeboard Connectors Replacement Considerations
Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may not match the specific high-temperature ratings or material composition required for qualified applications.
