845-015-544-602

Edgeboard Connectors Overview

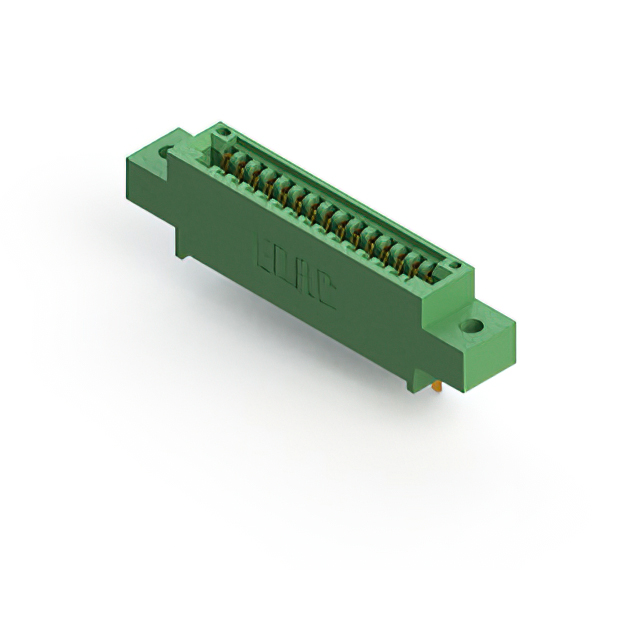

The EDAC Inc. 845-015-544-602 is a standard card edge connector from the High Temp Series, designed for single-edge board applications. It features 15 positions with a 2.54 mm (0.100 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts with a wire wrap termination type. Constructed with a green Diallyl Phthalate (DAP) insulator, it supports panel mounting in a straight configuration. The component operates within a temperature range of -40°C to +125°C and maintains an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• High-temperature rated construction using Diallyl Phthalate insulator for thermal stability
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Single row formation with wire wrap termination for secure PCB connection

Edgeboard Connectors Applications

• High-temperature electronic assemblies requiring stable connectivity
• Panel-mounted interface modules utilizing single-edge PCBs
• Industrial control systems operating in elevated thermal environments

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the wire wrap termination method aligns with your assembly process capabilities. Confirm that the board thickness specification matches your printed circuit board manufacturing tolerances. Check for any updated environmental compliance certifications required for your region before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-temperature rating is critical for the application environment. The wire wrap termination requires compatible tooling and assembly procedures distinct from solder-based methods. Verify that the panel mount style fits the mechanical constraints of the enclosure. Consider the single-row configuration limits if higher pin counts are necessary for the system design.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 845 High Temp Series, which is engineered for demanding thermal conditions. The series offers various position counts and termination options while maintaining consistent electrical performance standards. The 845 series is widely used in industrial and aerospace applications where reliability under heat stress is essential for long-term operational integrity.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternative part numbers. Cross-reference specifications such as contact spacing, board thickness acceptance, and termination type to ensure functional equivalence. Do not assume interchangeability based on physical dimensions alone without verifying electrical parameters.
