845-016-524-512

Edgeboard Connectors Overview

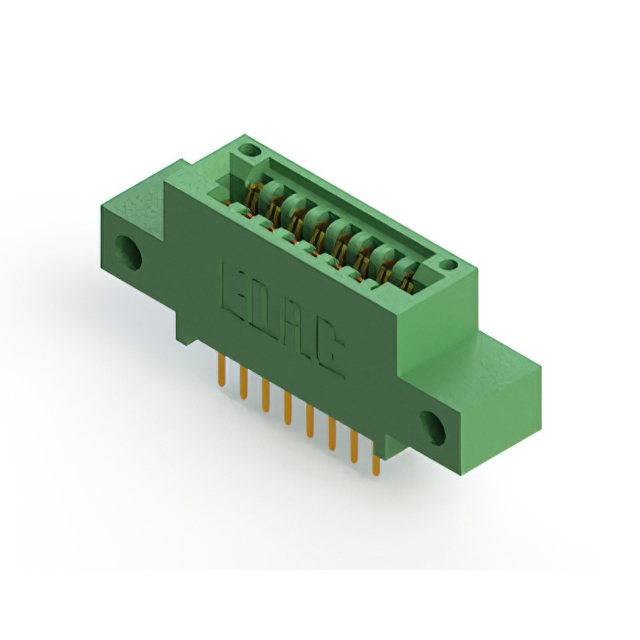

The EDAC Inc. 845-016-524-512 is a standard card edge connector from the 845 series, designed for high-temperature applications. It features a dual-edge configuration with 16 positions arranged in two rows and a 0.100 inch (2.54 mm) pitch. The connector utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) insulator. It supports wire wrap termination and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Dual-edge design accommodates double-sided circuit board insertion
• Gold-plated contacts ensure reliable signal transmission
• High-temperature DAP insulator material provides thermal stability

Edgeboard Connectors Applications

• High-temperature electronic assemblies
• Industrial control systems
• Military and aerospace equipment

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact contact plating thickness and insulation color specifications. Ensure that the wire wrap termination style matches the target PCB layout requirements before procurement.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface is required for high-temperature environments. Confirm that the 0.100 inch pitch and 16-position count align with the circuit board dimensions and signal routing needs.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series is characterized by robust construction suitable for demanding operational conditions where standard connectors may fail due to thermal stress.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may not match the specific high-temperature rating or dual-edge geometry required for this application.
