845-016-540-507

Edgeboard Connectors Overview

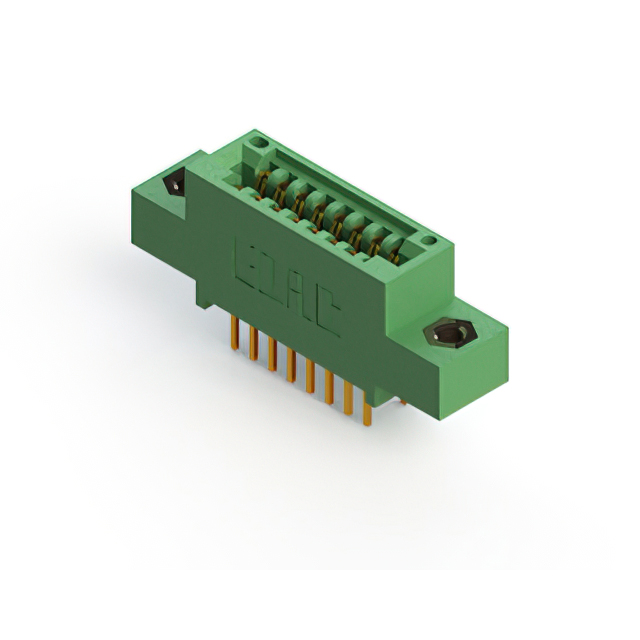

The EDAC Inc. 845-016-540-507 is a standard card edge connector featuring 16 positions with a 0.100 inch (2.54 mm) pitch. It utilizes a single row configuration and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). The contacts are gold-plated copper alloy, providing reliable electrical performance. This component employs wire wrap termination for secure mounting. Designed for panel installation in a vertical orientation, it operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Accepts .062 inch nominal thickness PCBs
• High profile insulator body construction
• Gold plated contact surfaces

Edgeboard Connectors Applications

• Panel mounted electronic assemblies
• Vertical interconnection systems
• Wire wrap termination environments

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to ensure correct termination style and mounting configuration. Confirm that the required board thickness aligns with the connector's acceptance specifications. Check current availability status as distribution channels may vary. Ensure compliance with environmental operating limits during selection.

Edgeboard Connectors Selection Notes

Select this model when a single-row, vertical card edge interface is required for panel mounting applications. The wire wrap termination suits prototyping or low-volume production needs. Verify that the 16-position count matches the signal requirements. Consider the high-temperature rating for demanding operational environments.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 series, characterized by high-temperature capabilities and robust mechanical design. The series offers various position counts and termination options. The 845-016-540-507 specifically addresses needs for moderate pin counts with wire wrap compatibility.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference lists for verified substitutes. Generic equivalents may not match the precise dimensional tolerances or termination characteristics required for panel mount integration.
