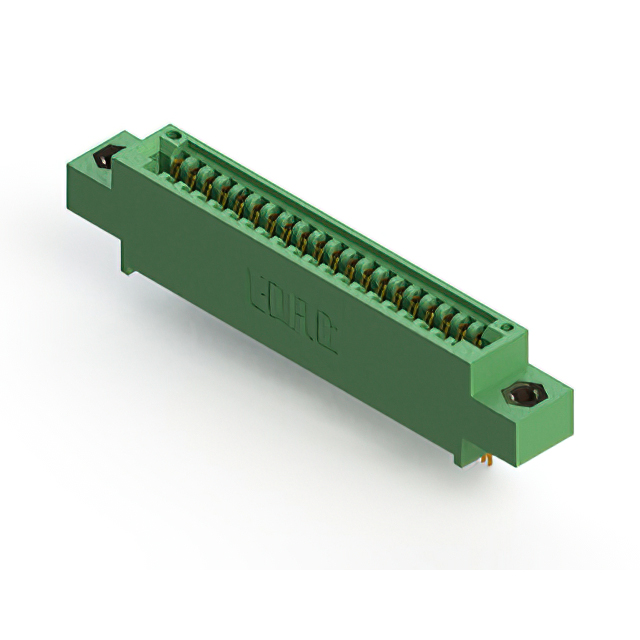

845-020-500-607

$85.35

Description：CONN EDGE SINGLE FML 20POS 0.100
Series：845
Mfr：EDAC Inc.
Package：Box

SKU:e1037cd07e56 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

845-020-500-607 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 20POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 845-020-500-607

Description：CONN EDGE SINGLE FML 20POS 0.100
Series：845
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：20
Number of Positions：20
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder Eyelet(s)
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Threaded Insert, M3
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 845-020-500-607

845-020-500-607

Edgeboard Connectors Overview

The EDAC Inc. 845-020-500-607 is a single-row card edge connector designed for through-hole mounting. It features 20 positions with a 0.100-inch (2.54mm) pitch. The contacts are made of copper alloy with a gold finish, providing reliable electrical performance. The insulator is constructed from Diallyl Phthalate (DAP), supporting an operating temperature range of -40°C to +125°C. This component is suitable for applications requiring robust connections in high-temperature environments.

Edgeboard Connectors Feature Summary

Single-row configuration with 20 contact positions
Gold-plated copper alloy contacts for durability
Through-hole termination method
High-temperature resistant DAP insulator material

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Test and measurement devices

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to ensure compatibility with design requirements. Confirm that the 20-position single-row format matches the target PCB layout. Check for any RoHS compliance updates or environmental restrictions relevant to the intended deployment region before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with 20 pins is required. Ensure the PCB card thickness accommodates the specified contact length. Verify that the through-hole soldering process aligns with manufacturing capabilities. Consider the high-temperature rating if the application involves significant thermal stress during operation.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series is engineered for demanding environments where standard connectors may fail. The 845-020-500-607 variant specifically addresses needs for moderate pin counts with reliable gold-plated contacts.
