845-023-500-108

Edgeboard Connectors Overview

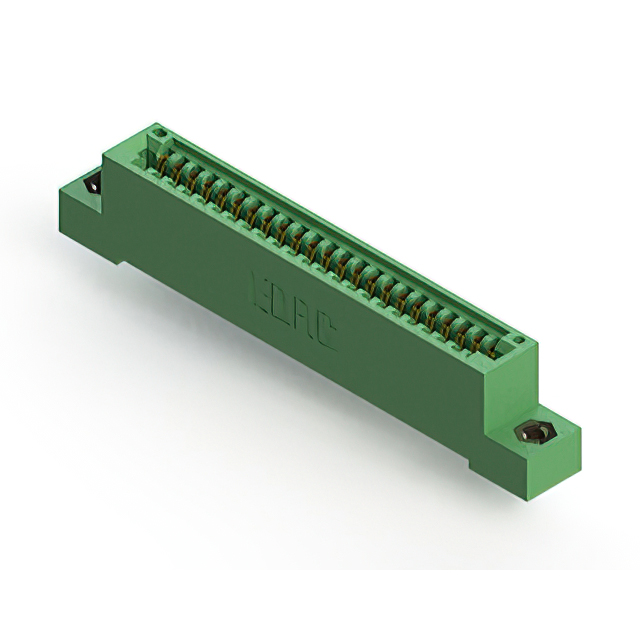

The EDAC Inc. 845-023-500-108 is a standard card edge connector from the 845 series, designed for single-edge board insertion. It features 23 positions with a 0.100 inch (2.54 mm) pitch and utilizes gold-plated copper alloy contacts. The component supports a maximum operating temperature of +125°C and a minimum of -40°C. It employs a Diallyl Phthalate (DAP) insulation material and offers a current rating of 3 A. The connector is configured for panel mounting with a right-angle orientation and includes threaded inserts for secure installation.

Edgeboard Connectors Feature Summary

• Gold-plated contacts ensure reliable signal transmission in high-temperature environments
• Threaded flange feature provides secure panel mounting stability
• Diallyl Phthalate insulation material offers durability and thermal resistance

Edgeboard Connectors Applications

• Industrial control systems requiring robust connectivity
• Automotive electronics applications
• Medical device hardware integration
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact flange configuration and contact plating thickness. Ensure compatibility with the target PCB edge thickness range of 0.054 to 0.070 inches. Confirm that the panel cutout dimensions align with the specified flange opening diameter of 0.128 inches. Check for any regional distribution restrictions or RoHS compliance documentation requirements before finalizing the purchase order.

Edgeboard Connectors Selection Notes

Select this model when a single-row, right-angle card edge connector with threaded mounting is required. The 23-position count suits moderate-density interface needs. The 3 A current rating and 125°C temperature limit make it suitable for demanding industrial or automotive environments. Consider alternative models if a different pitch, row count, or unthreaded mounting style is necessary for the specific application constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 High Temp series, which specializes in connectors capable of withstanding elevated temperatures. The series typically utilizes DAP insulation for superior thermal performance compared to standard materials. The 845-023-500-108 variant specifically addresses applications needing secure, threaded panel attachment alongside reliable high-temperature electrical connections.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and electrical specifications against existing inventory items such as the 845-023-559-101, noting differences in mounting angle and flange features.
