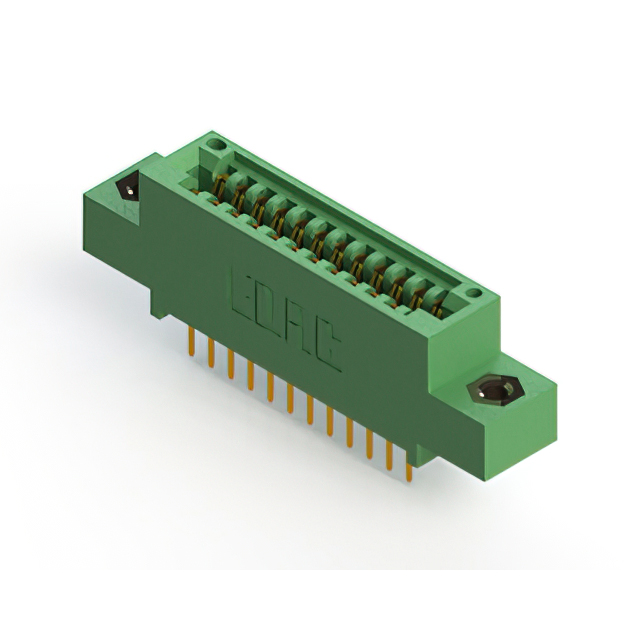

845-024-524-508 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 24POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 845-024-524-508
- Description：CONN EDGE DUAL FMALE 24POS 0.100
- Series：845
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：12
- Number of Positions：24
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 845-024-524-508
Edgeboard Connectors Overview
The EDAC Inc. 845-024-524-508 is a standard card edge connector from the 845 High Temp series, designed for high-temperature applications. It features a .100" (2.54mm) pitch and provides 24 positions in a single row configuration. The connector utilizes gold-plated copper alloy contacts and a Diallyl Phthalate (DAP) housing. It supports a maximum operating temperature of +125°C and a minimum of -40°C, with an insulation resistance of 5 GOhms and a current rating of 3 A.
Edgeboard Connectors Feature Summary
- High-temperature capability up to +125°C
- Gold-plated contacts for reliable signal transmission
- Diallyl Phthalate (DAP) housing material
Edgeboard Connectors Applications
- High-temperature electronic assemblies
- Industrial control systems
- Military and aerospace equipment
Edgeboard Connectors Procurement Notes
Verify component authenticity through authorized EDAC channels or certified distributors. Confirm RoHS compliance status via official datasheets. Ensure storage conditions maintain integrity prior to installation. Validate part number accuracy against engineering specifications before procurement.
Edgeboard Connectors Selection Notes
Select this connector for applications requiring high thermal stability and reliable electrical performance. Consider the 24-position count and single-row layout for board space constraints. Verify compatibility with mating card edge thicknesses and panel mounting requirements.
Edgeboard Connectors Part Context
Part of the EDAC 845 series, known for high-temperature performance. Designed for robust connectivity in demanding environments. Offers consistent electrical characteristics across the series. Suitable for critical applications where reliability under thermal stress is essential.
Edgeboard Connectors Replacement Considerations
Consult EDAC technical documentation for direct substitutes within the 845 series. Verify pin count, pitch, and termination method compatibility. Ensure replacement parts meet identical temperature and current ratings.
Edgeboard Connectors FAQ
What is the maximum operating temperature?
+125°C
How many positions does it have?
24 positions
