845-030-524-803

Edgeboard Connectors Overview

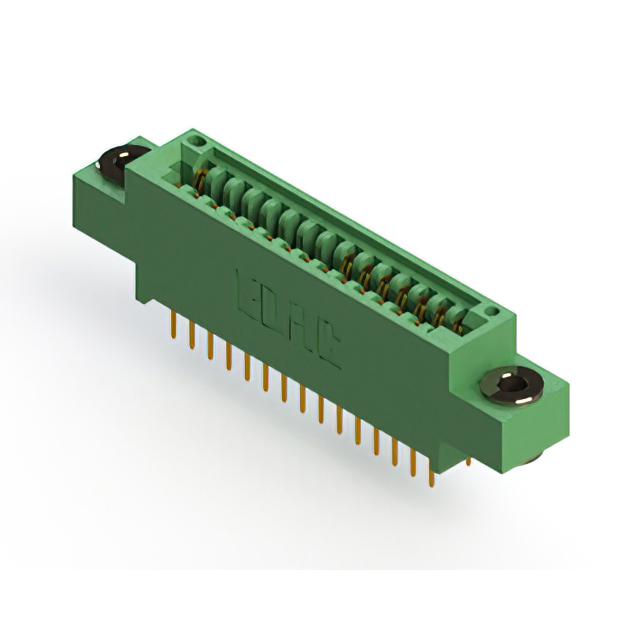

The EDAC Inc. 845-030-524-803 is a dual female card edge connector from the 845 High Temp series, designed for panel mount applications. It features a single row with 30 positions and a 0.100-inch (2.54 mm) pitch. The connector utilizes gold-plated copper alloy contacts and a diallyl phthalate (DAP) insulator, supporting a current rating of 3 A. It accommodates board thicknesses between 0.054 and 0.070 inches and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using DAP insulation material
• Gold-plated contact surfaces for reliable signal transmission
• Vertical panel mount configuration for secure installation

Edgeboard Connectors Applications

• Industrial control systems requiring high thermal stability
• Automotive electronics modules
• Communication equipment interfaces
• Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC channels due to limited availability. Confirm that the specific suffix matches required environmental certifications. Check for obsolescence status as some variants may be discontinued. Ensure compatibility with existing panel mounting hardware before procurement.

Edgeboard Connectors Selection Notes

Select this model when vertical panel mounting and high-temperature performance are critical. The 30-position count suits moderate-density interconnect needs. Verify that the 0.100-inch pitch aligns with target PCB design constraints. Consider the 3 A current rating for power distribution requirements in the application.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series is engineered for demanding environments where standard connectors may fail. The 845-030 variant specifically addresses applications needing robust electrical connections in elevated thermal conditions.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult EDAC technical support for direct replacements or updated equivalents.
