845-030-541-202

Edgeboard Connectors Overview

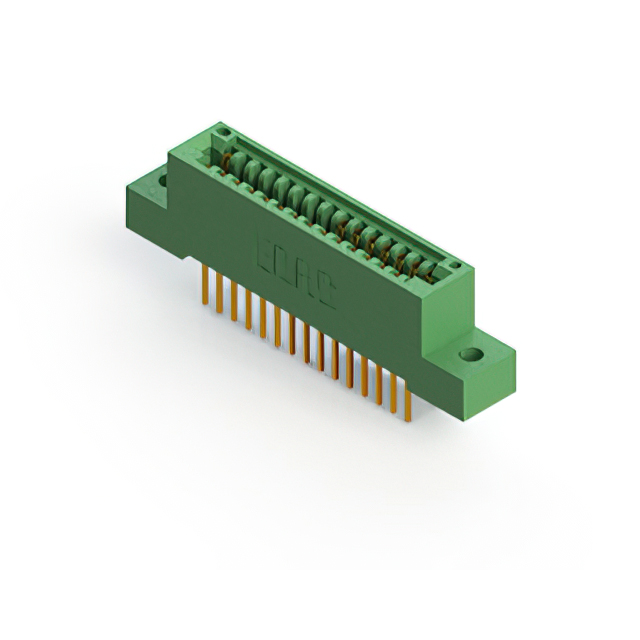

The EDAC Inc. 845-030-541-202 is a standard card edge connector from the 845 High Temp series, designed for panel mounting applications. It features a dual female configuration with 30 positions arranged in two rows. The connector utilizes a 0.100-inch (2.54mm) pitch and employs a solder pin termination method. Constructed with copper alloy contacts and a diallyl phthalate (DAP) insulator, it supports a current rating of 3A. The unit is specified for operation within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board insertion
• High-temperature resistant DAP insulating material construction
• Panel mount installation style with vertical orientation
• Gold-plated copper alloy contacts for reliable signal transmission

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane integration
• Automotive electronic module interconnects
• Test and measurement instrument card slots

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination type and plating specifications. Ensure that the procurement channel provides valid manufacturer traceability records. Confirm compliance with RoHS directives if required by the end application. Validate that the component status matches current production availability before finalizing orders.

Edgeboard Connectors Selection Notes

Select this model when a dual-row, high-temperature card edge connector is required for panel-mounted systems. The 30-position count and 2.54mm pitch must match the target PCB design constraints. Consider the 3A current rating and operating temperature limits relative to the electrical load. Verify compatibility with the mating card thickness and guide rail requirements for proper mechanical alignment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 Series, which specializes in high-temperature card edge connectors. The series is engineered for demanding environments where standard plastic materials may fail. The 845-030-541-202 variant specifically addresses needs for dual-row connectivity with robust thermal stability, distinguishing it from lower-temperature general-purpose connectors.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers such as 845-030-541-188 or 845-030-541-278 for potential alternatives within the same series. Verify that any substitute maintains identical pin count, pitch, and mounting style. Ensure that electrical ratings and material compositions are equivalent to prevent performance degradation.
