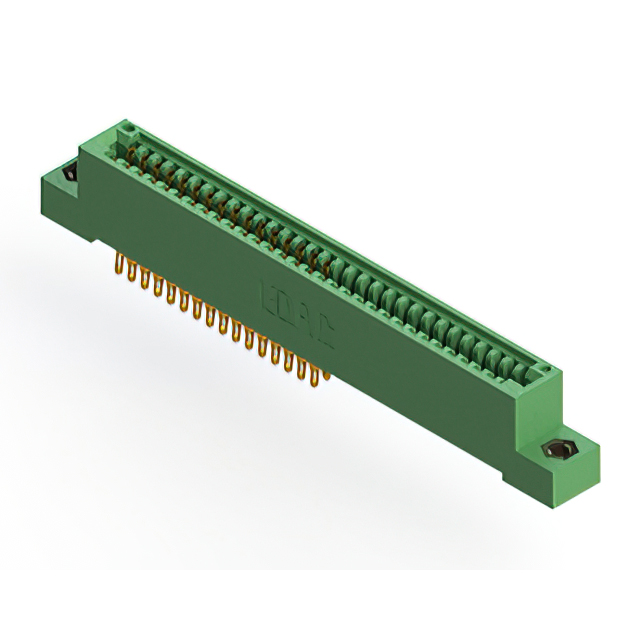

845-032-555-207 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 32POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 845-032-555-207
- Description：CONN EDGE DUAL FMALE 32POS 0.100
- Series：845
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：16
- Number of Positions：32
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 845-032-555-207
Edgeboard Connectors Overview
The EDAC Inc. 845-032-555-207 is a dual-edge female card edge connector featuring 32 positions with a 0.100-inch (2.54mm) pitch. It utilizes gold-plated contacts and a green Diallyl Phthalate (DAP) insulation body. The component supports panel mounting with flush mount, top opening, and threaded M3 insert flange features. It operates within a temperature range of -40°C to +125°C.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for board insertion
- Gold-plated terminal surfaces for reliable signal transmission
- Flush mount design with threaded M3 insert for secure panel attachment
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Telecommunications equipment backplanes
- Automotive electronic modules
- Medical device circuit boards
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the official EDAC datasheet to ensure compatibility with required flange types and termination styles. Confirm that the dual-edge configuration matches the target PCB design requirements before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this model when a dual-sided connection interface is necessary for high-density applications. Ensure the PCB thickness accommodates the specified 0.100-inch pitch and verify that the threaded M3 flange feature aligns with the mechanical enclosure constraints.
Edgeboard Connectors Part Context
This component belongs to the EDAC 845 Series, which provides standard card edge connectors designed for various industrial and commercial environments. The series offers multiple position counts and mounting options to support diverse electronic assembly needs.
Edgeboard Connectors Replacement Considerations
Consult the official EDAC 845 Series ordering guide for cross-reference information. Verify mechanical dimensions and electrical ratings against potential substitutes to ensure functional equivalence in the target application.
