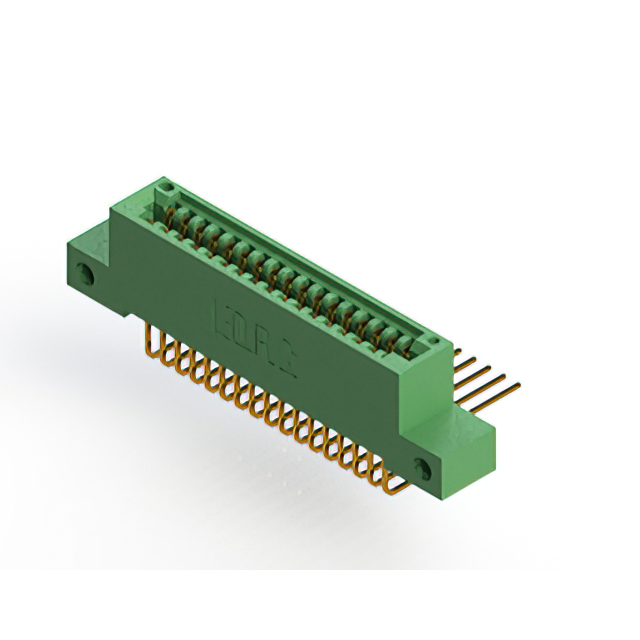

845-034-558-212 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 34POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 845-034-558-212
- Description：CONN EDGE DUAL FMALE 34POS 0.100
- Series：845
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：17
- Number of Positions：34
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 845-034-558-212
Edgeboard Connectors Overview
The EDAC Inc. 845-034-558-212 is a standard dual-edge card edge connector designed for panel mounting applications. It features a .100 inch (2.54 mm) contact pitch and accommodates printed circuit boards with a nominal thickness of .062 inches (1.57 mm). The component utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and includes a high-profile insulator body constructed from Diallyl Phthalate (DAP). This configuration supports robust mechanical stability in demanding environments.
Edgeboard Connectors Feature Summary
- Dual-edge design accepts non-specified dual-edge cards
- Gold-plated copper alloy contacts for conductivity
- High-profile DAP insulator body for durability
Edgeboard Connectors Applications
- Industrial control systems requiring panel-mounted interconnects
- Automotive electronics modules
- Communication equipment backplanes
- Medical device internal connections
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against the manufacturer's current ordering guide to confirm exact pin count, row configuration, and termination style. Ensure compatibility with the target PCB thickness and panel mounting requirements before finalizing procurement decisions.
Edgeboard Connectors Selection Notes
Select this model when a dual-edge connection is required for .062 inch thick boards. Confirm that the panel mount orientation matches the system layout. Verify that the operating temperature range meets the environmental conditions of the intended application.
Edgeboard Connectors Part Context
This component belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series is characterized by its use of DAP material for superior thermal resistance compared to standard phenolic or polyester insulators, making it suitable for harsh industrial environments.
Edgeboard Connectors Replacement Considerations
Check the EDAC 845 series ordering guide for alternative part numbers with matching pin counts and row configurations. Ensure any substitute maintains the same .100 inch pitch and dual-edge acceptance capability.
