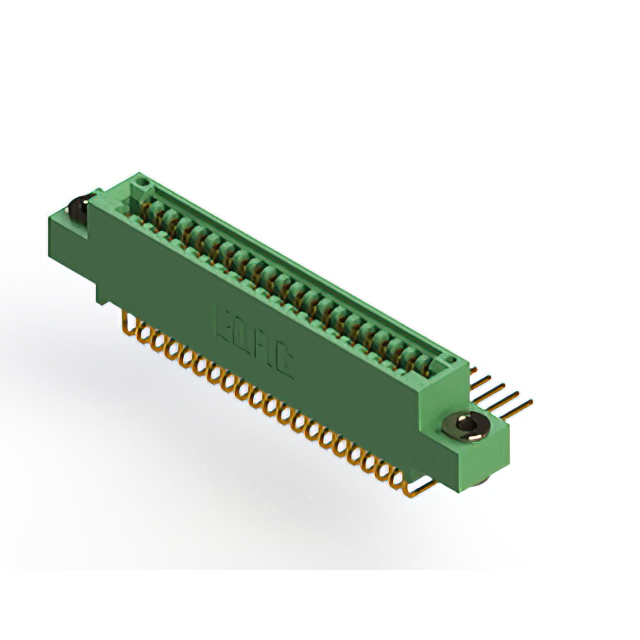

845-042-559-503 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 42POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 845-042-559-503
- Description：CONN EDGE DUAL FMALE 42POS 0.100
- Series：845
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：21
- Number of Positions：42
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 845-042-559-503
Edgeboard Connectors Overview
The EDAC Inc. 845-042-559-503 is a dual female card edge connector from the 845 High Temp series. It features 42 positions with a 0.100 inch (2.54 mm) pitch. The component utilizes gold contact finish over copper alloy for reliable signal transmission. Designed for through-hole right-angle mounting, it accommodates card thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm).
Edgeboard Connectors Feature Summary
- Dual female configuration for secure interface with printed circuit boards.
- High temperature series design suitable for demanding thermal environments.
- Gold-plated contacts ensure durability and low contact resistance.
Edgeboard Connectors Applications
- Industrial control systems requiring high-temperature stability.
- Telecommunications equipment interfaces.
- Aerospace and defense electronic assemblies.
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact termination and material specifications. Ensure compatibility with target PCB layout dimensions and required operating temperature ranges before finalizing procurement decisions.
Edgeboard Connectors Selection Notes
Select this model when a dual-edge connector with a standard 0.100-inch pitch is required. Confirm that the application environment supports the high-temperature rating of the 845 series. Validate that the board thickness falls within the specified 0.054 to 0.070-inch range for proper mechanical engagement.
Edgeboard Connectors Part Context
This component belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series is engineered for robust performance in sectors such as aerospace and industrial automation where standard connectors may fail under thermal stress.
Edgeboard Connectors Replacement Considerations
Consult official EDAC cross-reference guides for verified substitutes. Generic equivalents may not match the specific high-temperature ratings or dimensional tolerances required for this application.
