845-044-558-502

Edgeboard Connectors Overview

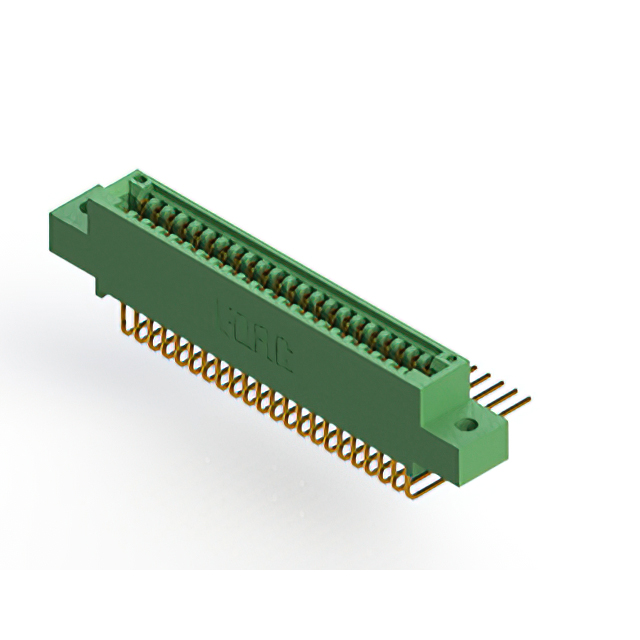

The EDAC Inc. 845-044-558-502 is a card edge connector from the 845 high-temperature series, designed for robust electronic interconnections. It features a dual female configuration with 44 positions and a 0.100-inch (2.54 mm) contact pitch. The component is packaged in boxes and is currently listed as obsolete by the manufacturer.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board mating
• High-temperature series construction for thermal stability
• Standard 0.100-inch pitch spacing

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Automotive electronics modules
• Aerospace and defense equipment
• Medical device interfaces

Edgeboard Connectors Procurement Notes

Verify component obsolescence status prior to procurement planning. Confirm availability through authorized distributors or secondary markets. Ensure storage conditions meet manufacturer specifications to maintain connector integrity during handling and installation.

Edgeboard Connectors Selection Notes

Select this model for applications requiring dual-sided card edge connectivity with standard 0.100-inch spacing. Validate that the target environment supports the high-temperature series ratings. Consider pin count compatibility with the specific circuit board layout requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 series of card edge connectors, which are engineered for demanding environments. The series emphasizes durability and thermal resistance, making it suitable for industrial and specialized electronic applications where standard connectors may fail under stress.

Edgeboard Connectors Replacement Considerations

As the part is marked obsolete, identify equivalent models within the same series or compatible alternatives with matching 44-position dual female configurations and 0.100-inch pitch. Verify mechanical and electrical compatibility before substitution.
