845-046-525-504

Edgeboard Connectors Overview

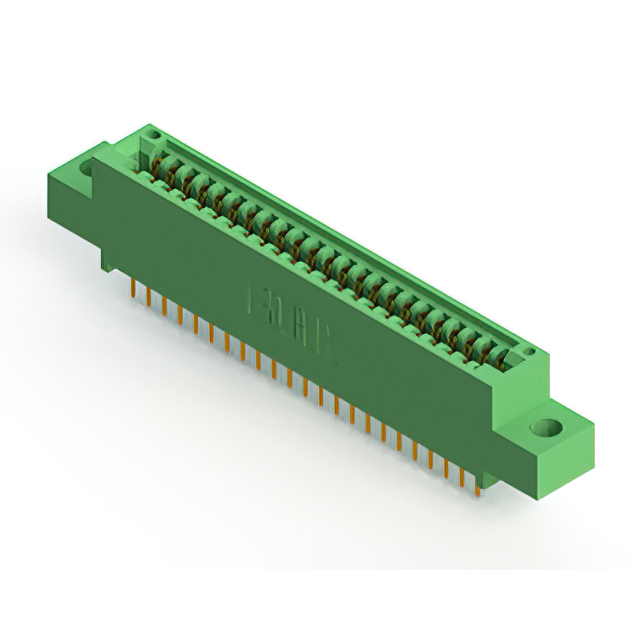

The EDAC Inc. 845-046-525-504 is a standard card edge connector from the 845 series, designed for single-edge board insertion. It features 46 positions with a 0.100 inch (2.54 mm) pitch and utilizes gold-plated contacts on copper alloy terminals. The housing is constructed from green Diallyl Phthalate (DAP), providing thermal stability up to +125°C. This component supports vertical panel mounting via through-hole solder pin termination.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for dual-edge card insertion
• Gold-plated terminal surfaces ensure reliable electrical conductivity
• Vertical orientation facilitates direct panel integration
• Thermoset DAP housing material offers high heat resistance

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplane interconnects
• Automotive electronic module signal routing
• Medical device internal circuit board linking

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating thickness and housing color specifications. Ensure the selected variant matches the required board thickness tolerance and mounting style constraints for your assembly design.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, 46-position interface is required for vertical panel mounting applications. Consider the 0.100-inch pitch compatibility with existing PCB layouts and verify that the operating temperature range meets the environmental demands of the target deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 High Temperature Series, which specializes in connectors capable of withstanding elevated thermal conditions. The series typically employs robust thermoset materials to maintain structural integrity during soldering processes and high-temperature operation cycles.

Edgeboard Connectors Replacement Considerations

Cross-reference part numbers such as 845-046-525-603 or 845-046-524-108 for alternative configurations within the same series. Verify mechanical dimensions and electrical ratings before substitution.
