845-062-525-104

Edgeboard Connectors Overview

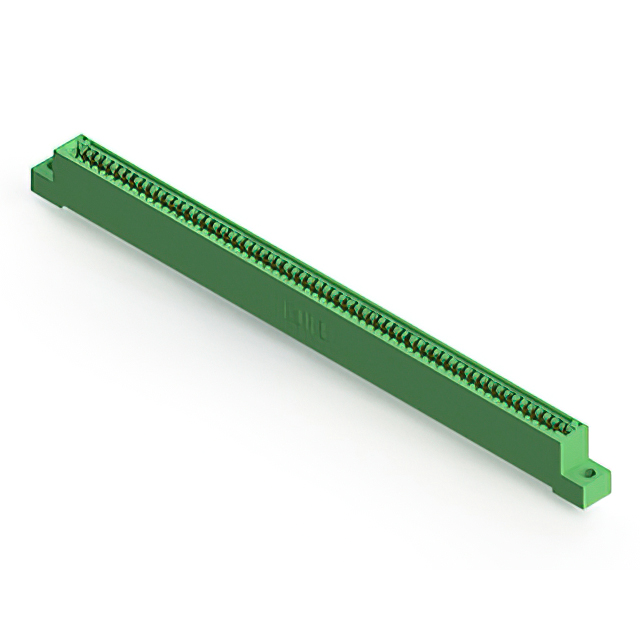

The EDAC Inc. 845-062-525-104 is a standard single-row card edge connector featuring a 2.54 mm (0.100 inch) pitch and 62 positions. Designed for panel mounting, it utilizes gold-plated copper alloy contacts with a current rating of 3 A. The housing is constructed from diallyl phthalate (DAP), supporting PCB thicknesses of 1.57 mm. It operates within a temperature range of -40°C to +125°C and employs solder pin termination.

Edgeboard Connectors Feature Summary

• Single-row configuration with 62 contact positions for high-density signal transmission
• Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance
• Panel mount design with vertical orientation for secure structural integration
• High-temperature resistant DAP housing supports operation up to +125°C

Edgeboard Connectors Applications

• Industrial control systems requiring robust panel-mounted interconnects
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement devices needing reliable high-current connections
• Automotive electronics operating in elevated temperature environments

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style, plating thickness, and flange options. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference the manufacturer part number with authorized distributors to confirm current availability and authenticity. Request updated datasheets to validate environmental ratings and mechanical dimensions for the specific revision.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 62-position interface is required with a 2.54 mm pitch. Confirm that the panel mounting style aligns with the enclosure design constraints. Verify that the 3 A current rating meets the electrical load requirements of the application. Ensure the operating temperature range covers the expected environmental conditions of the deployment site.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 845 series, which specializes in high-temperature standard card edge connectors. The series offers various position counts and mounting styles, providing modular solutions for diverse electronic applications. The 845 series is characterized by its durable construction and consistent performance across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct replacements. Verify that alternative parts match the 62-position count, 2.54 mm pitch, and panel mounting requirements. Ensure electrical ratings and material compositions are equivalent to maintain system reliability.
