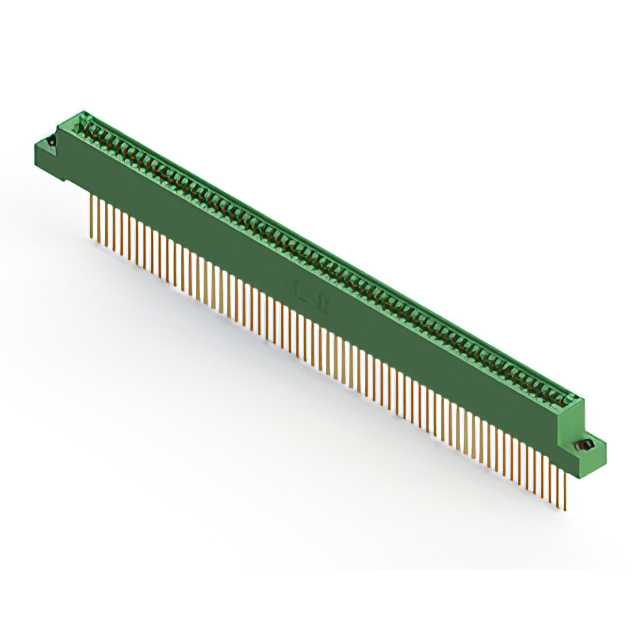

845-063-541-108

$112.73

Description：CONN EDGE SINGLE FML 63POS 0.100
Series：845
Mfr：EDAC Inc.
Package：Box

SKU:b81fb797ab0d Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

845-063-541-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 63POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 845-063-541-108

Description：CONN EDGE SINGLE FML 63POS 0.100
Series：845
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：63
Number of Positions：63
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 845-063-541-108

845-063-541-108

Edgeboard Connectors Overview

The EDAC Inc. 845-063-541-108 is a standard card edge connector from the 845 high-temperature series, designed for vertical panel mounting applications. It features a single row of 63 positions with a 2.54 mm (0.100 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) housing. It supports board thicknesses ranging from 1.37 mm to 1.78 mm and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

Vertical panel mount design with top opening and threaded plug installation
Gold-plated copper alloy contacts for reliable signal transmission
High-temperature DAP housing material for thermal stability
Single-row configuration optimized for specific edge board widths

Edgeboard Connectors Applications

Industrial control systems requiring high-temperature reliability
Telecommunications equipment interfaces
Automotive electronics modules
Medical device internal connections
Aerospace and defense instrumentation

Edgeboard Connectors Procurement Notes

Verify the exact mating edge board thickness against the specified range of 1.37 mm to 1.78 mm before integration. Confirm that the required contact plating and housing material meet environmental standards for the intended operating temperature range. Ensure compatibility with the vertical panel mounting style and threaded plug fastening method during mechanical assembly planning.

Edgeboard Connectors Selection Notes

Select this component when a single-row, 63-position interface is required for vertical panel mounting. The 2.54 mm pitch suits standard PCB layouts. Consider the high-temperature rating and DAP housing if the application involves elevated thermal environments. Verify that the gold-plated contacts align with conductivity requirements and that the physical dimensions match the available panel space constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series is characterized by robust construction suitable for demanding industrial and commercial environments. The 845-063-541-108 specifically denotes a 63-position variant with a single row, distinguishing it from multi-row or different position count models within the same product family.
