845-065-525-612

Edgeboard Connectors Overview

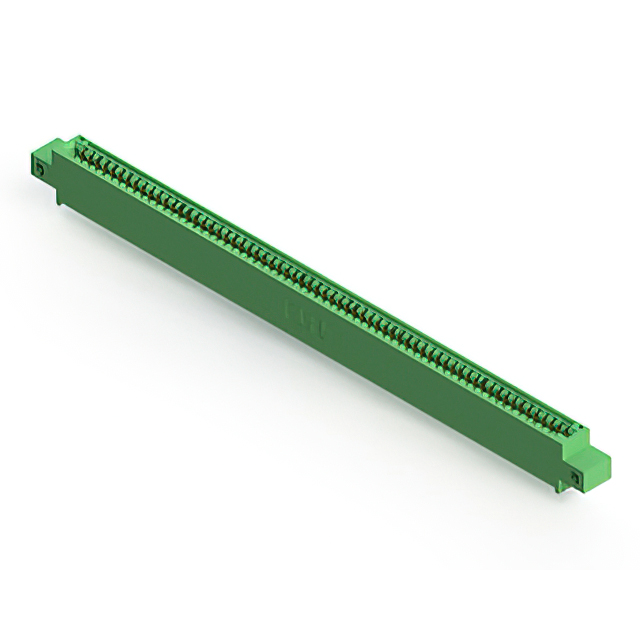

The EDAC Inc. 845-065-525-612 is a standard card edge connector from the 845 series, designed for single-row applications with a 0.100 inch (2.54 mm) pitch. It features 65 positions and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. The housing is constructed from green diallyl phthalate (DAP), providing robust insulation and mechanical stability. This component supports panel mounting in a vertical orientation and is rated for operation within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• Single-row configuration with 65 contact positions for high-density interconnects
• Gold-plated copper alloy contacts ensure durable electrical performance
• Vertical panel mount design facilitates secure board integration
• Diallyl phthalate (DAP) housing provides thermal resistance and structural integrity

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement instrumentation boards
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating thickness and housing color variations. Ensure that the selected variant matches the required PCB thickness tolerance and mounting style specifications for the target application environment.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, 65-position interface is required with a 2.54 mm pitch. Confirm compatibility with the target PCB edge thickness, typically between 0.054 and 0.070 inches. Evaluate the need for vertical panel mounting versus other orientations to ensure proper mechanical fit within the enclosure design constraints.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 High Temperature Series, which offers extensive customization options for card edge connectors. The series is engineered for demanding environments, providing various pin counts, contact materials, and mounting styles to meet diverse interconnect requirements across industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct cross-reference part numbers. Verify that any substitute maintains identical pitch, position count, and mounting configuration to ensure mechanical and electrical compatibility without redesigning the host PCB.
