845-067-500-403

Edgeboard Connectors Overview

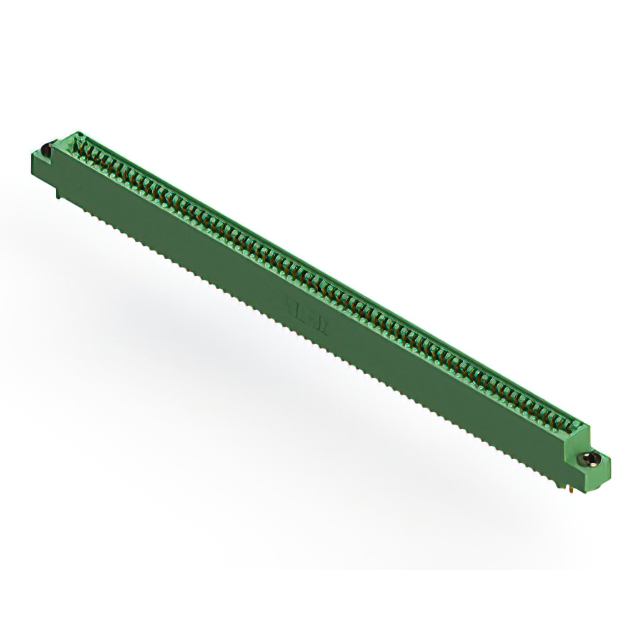

The EDAC Inc. 845-067-500-403 is a high-reliability card edge connector from the 845/895 Series, designed for demanding environments. It features a single row of 67 female positions with a 0.100" (2.54mm) pitch. The connector utilizes gold-plated contacts and a green Diallyl Phthalate (DAP) housing. It supports board thicknesses ranging from 0.054" to 0.070" (1.37mm to 1.78mm). Rated for operation between -40°C and +125°C, it offers robust performance in high-temperature applications.

Edgeboard Connectors Feature Summary

• High-temperature capability suitable for rigorous operational environments
• Gold-plated contacts ensure reliable signal transmission
• Single-row female configuration for standard card edge insertion
• Diallyl Phthalate (DAP) housing provides structural stability

Edgeboard Connectors Applications

• High-reliability electronic assemblies
• Industrial control systems requiring thermal stability
• Military and aerospace circuit boards
• Communication equipment backplanes

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination style and mounting variations. Ensure compatibility with target PCB thickness limits before integration. Confirm current availability status as manufacturing schedules may vary. Cross-reference pin counts and pitch requirements with system design specifications to prevent interface mismatches during procurement.

Edgeboard Connectors Selection Notes

Select this component when high-temperature resilience and durable contact plating are required for single-row card edge interfaces. The 0.100-inch pitch accommodates standard board layouts. Consider the DAP material properties for environmental resistance. Validate that the 67-position count matches the application's signal or power line requirements precisely.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845/895 Series, which specializes in high-reliability connectors for harsh conditions. The series is characterized by its use of DAP materials and gold contacts. These connectors are engineered for long-term stability in industrial and defense sectors where standard components might fail under thermal stress.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts like 845-067-500-407 or 845-067-500-412, differing primarily in termination or mounting styles. Verify mechanical fit and electrical ratings before swapping. Generic equivalents may lack the specific high-temperature certification of the 845 series.
