845-069-521-612

Edgeboard Connectors Overview

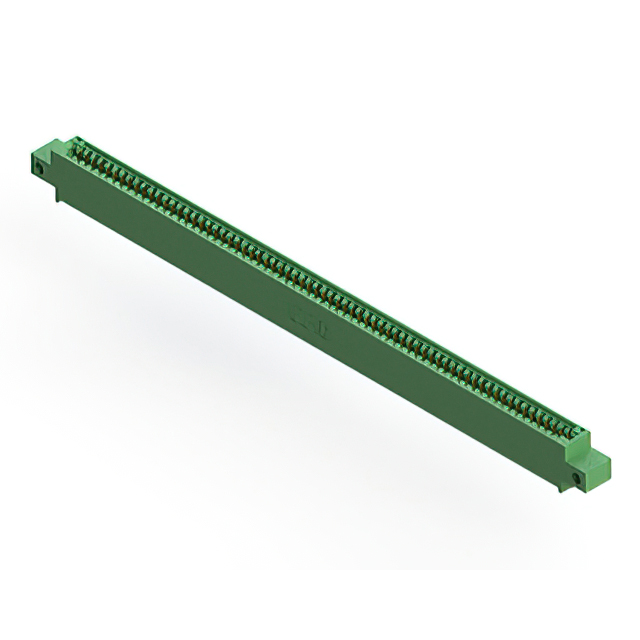

The EDAC Inc. 845-069-521-612 is a standard card edge connector from the 845 high-temperature series, designed for single female mating with printed circuit boards. It features 69 positions arranged in a single row with a 0.100 inch (2.54 mm) pitch. The connector utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) housing. It supports panel mounting in a vertical orientation with solder pin termination. The component is rated for a maximum operating temperature of +125°C and a minimum of -40°C, ensuring reliability in demanding thermal environments.

Edgeboard Connectors Feature Summary

• High-temperature capability suitable for elevated thermal operating conditions
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Diallyl phthalate housing provides structural integrity and chemical stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust connectivity
• Telecommunications equipment with high-density board interfaces
• Automotive electronics modules operating in varied climates

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm plating thickness and material specifications. Ensure compatibility with the target PCB edge thickness and mounting hole patterns. Confirm that the single-row configuration aligns with the design requirements. Check for any RoHS compliance updates or end-of-life notices directly from the manufacturer before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this connector when a single-row, 69-position interface is required for vertical panel mounting. The 0.100 inch pitch accommodates standard board layouts. Consider the high-temperature rating if the application exceeds standard commercial limits. Verify that the DAP housing material meets environmental exposure requirements for the intended deployment scenario.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 series, which specializes in high-temperature card edge connectors. The series offers various position counts and mounting styles to support diverse electronic assembly needs. The 845-069-521-612 variant specifically addresses applications needing a moderate number of connections with enhanced thermal resilience compared to standard commercial-grade alternatives.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for direct substitutes. Verify that any alternative maintains the same 69-position count, 0.100 inch pitch, and vertical panel mount form factor. Ensure electrical ratings and material compositions match the original design specifications to prevent integration issues.
