845-069-558-108

Edgeboard Connectors Overview

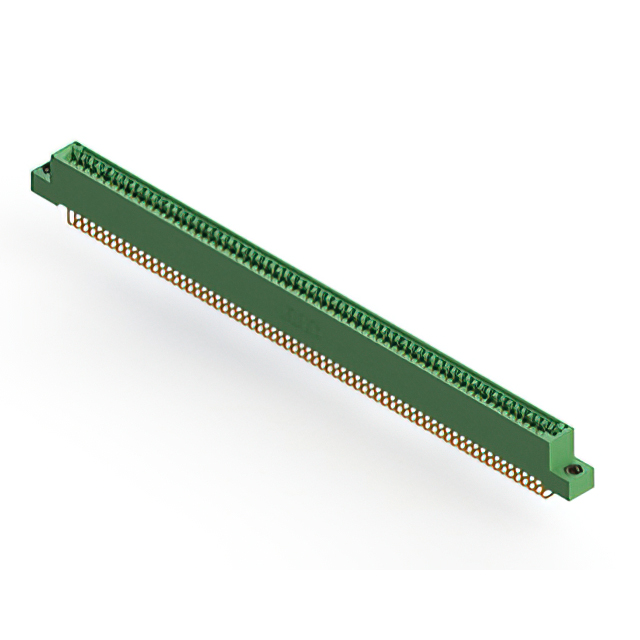

The EDAC Inc. 845-069-558-108 is a standard card edge connector from the 845 High Temp series, designed for vertical panel mounting applications. This single-edge female connector features 69 positions with a precise 2.54 mm (0.100 inch) pitch. It utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and corrosion resistance. The housing is constructed from diallyl phthalate (DAP), providing durability and thermal stability. Designed for solder pin termination, this component supports a current rating of 3 A and accommodates board thicknesses up to 1.57 mm, making it suitable for high-temperature industrial environments requiring robust connectivity.

Edgeboard Connectors Feature Summary

• Vertical panel mount configuration for secure installation
• Gold-plated copper alloy contacts for enhanced conductivity
• Diallyl phthalate (DAP) housing material for thermal stability
• Single-edge design optimized for specific board interfaces

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Communication equipment interface connections
• Automotive electronics modules
• Medical device internal circuitry
• Aerospace instrumentation panels

Edgeboard Connectors Procurement Notes

Verify the exact part number against official EDAC documentation to confirm compatibility with your specific board thickness and contact requirements. Ensure that the vertical mounting style aligns with your chassis design constraints. Cross-reference the 69-position count and 2.54 mm pitch with your PCB layout specifications. Confirm RoHS compliance status if required by your manufacturing standards before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a vertical, single-edge solution with high-temperature capabilities is required. The DAP housing offers superior performance in elevated thermal conditions compared to standard materials. The gold plating ensures long-term reliability in demanding environments. Consider the 3 A current rating and 1.57 mm board thickness tolerance during mechanical integration planning to ensure proper fit and electrical performance.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 High Temp series, which specializes in connectors capable of withstanding elevated operating temperatures. The series is engineered for rugged applications where standard connectors might fail due to heat stress. The 845 series maintains consistent electrical characteristics across various position counts, offering designers flexibility while ensuring uniform quality and performance standards across different product configurations.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Generic cross-references may not match the specific DAP housing material or gold plating thickness. Verify that any substitute maintains the same 2.54 mm pitch and vertical mounting orientation to ensure mechanical compatibility.
