845-092-524-212

Edgeboard Connectors Overview

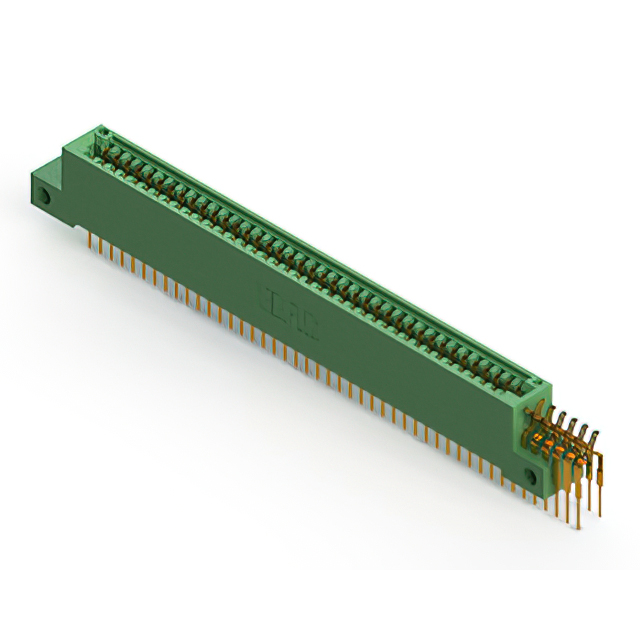

The EDAC Inc. 845-092-524-212 is a standard card edge connector from the 845 series, designed for high-temperature applications. It features a 0.100 inch (2.54 mm) pitch and provides 92 positions in a dual female configuration. The contacts are gold-plated copper alloy with a thickness of 10.0 microinches (0.25 micrometers). The housing is constructed from green diallyl phthalate (DAP), supporting a maximum operating temperature of +125°C and a minimum of -40°C. This component utilizes a single row design with a board thickness tolerance of 0.054 to 0.070 inches (1.37 to 1.78 mm).

Edgeboard Connectors Feature Summary

• Dual edge female contact configuration for secure card insertion.
• High-temperature resistant DAP insulator material rated up to 125°C.
• Gold-plated copper alloy contacts ensure reliable signal transmission.
• Panel mount installation style with vertical orientation.

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature stability.
• Telecommunications equipment interfaces.
• Automotive electronics modules.
• Aerospace and defense instrumentation.
• Medical device internal connections.

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact termination type and mounting hardware variations. Ensure compatibility with target PCB stack-up dimensions and mating card thickness specifications before integration. Cross-reference RoHS compliance status with current manufacturer declarations to meet regional regulatory requirements.

Edgeboard Connectors Selection Notes

Select this model when dual-edge connectivity is required within the 845 series framework. Confirm that the 92-position count aligns with circuit density needs. Evaluate thermal environment constraints to ensure operation within the specified -40°C to +125°C range. Verify panel mounting requirements match the vertical installation profile.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 High Temp Series, which specializes in connectors capable of withstanding elevated temperatures. The series offers various position counts and termination options, utilizing durable materials like DAP for insulation. It serves as a robust solution for harsh environments where standard connectors may fail due to thermal stress or mechanical vibration.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include part numbers such as 845-092-524-108 or 845-092-523-412, depending on specific termination and mounting variations. Verify pinout and dimensional compatibility before substitution. Consult official EDAC cross-reference guides for approved alternative part numbers.
