845-092-524-508

Edgeboard Connectors Overview

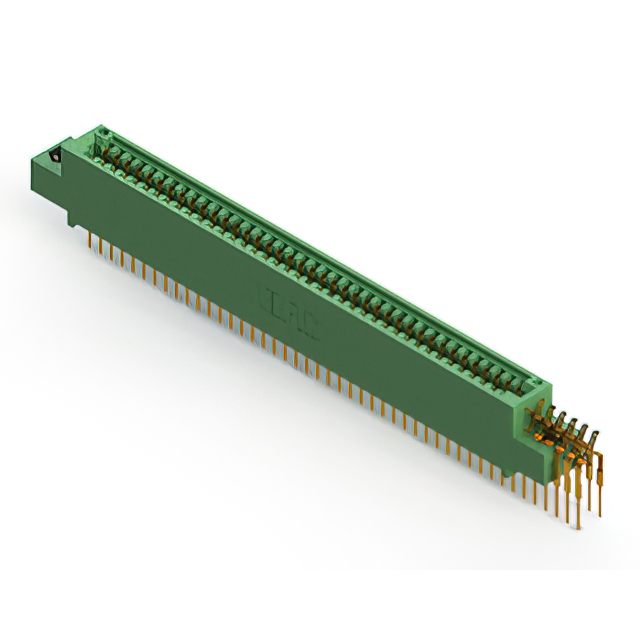

The EDAC Inc. 845-092-524-508 is a standard card edge connector from the 845 series, designed for high-temperature applications. It features a .100 inch (2.54 mm) pitch and provides 92 positions. The connector utilizes gold-plated copper alloy contacts with a current rating of 3 A. Constructed with Diallyl Phthalate (DAP) housing, it supports panel mounting in a vertical orientation. The unit is designed for wire hole termination and accommodates board thicknesses within the specified range.

Edgeboard Connectors Feature Summary

• High-temperature series construction suitable for demanding thermal environments
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Vertical panel mount configuration facilitates structured chassis integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust connectivity
• Telecommunications infrastructure equipment
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffix codes to ensure correct contact plating and housing material specifications. Confirm that the intended application temperature does not exceed the maximum operating limit of +125 C. Check for availability status as distribution channels may vary. Ensure compatibility with the target PCB edge thickness and mounting hardware requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density, single-row card edge interface is required for vertical panel installation. The 92-position count suits complex signal routing needs. Consider the DAP housing material for its thermal stability. Verify that the 3 A current rating meets the circuit load requirements. Ensure the wire hole termination method aligns with the assembly process capabilities.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 845 High Temp Series, which is engineered for durability in elevated temperature conditions. The series offers various position counts and termination styles to support diverse industrial and commercial electronic designs. The specific model represents a mid-range position count option within this standardized product family.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other EDAC 845 series variants only if pin count and mechanical dimensions match exactly.
