Edgeboard Connectors Overview

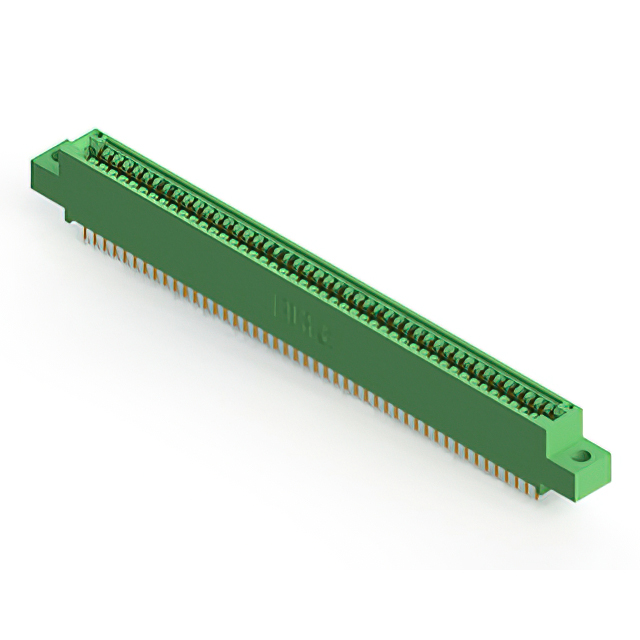

The EDAC Inc. 845-092-525-504 is a dual-edge female card edge connector from the 845 high-temperature series. It features 92 positions with a 0.100 inch (2.54 mm) spacing. The connector utilizes gold-plated contacts and a green body, designed for through-hole mounting via wire wrap termination. It operates within a temperature range of -40°C to 125°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated contacts ensure reliable electrical performance
• High-temperature rated construction for demanding environments

Edgeboard Connectors Applications

• High-reliability electronic assemblies
• Industrial control systems
• Aerospace and defense equipment

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm current availability status. Ensure that the required termination style matches the wire wrap specification. Check for any recent lifecycle changes or obsolescence notices directly from the manufacturer before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 92 positions is required. Confirm that the 0.100 inch pitch aligns with the target PCB design. Verify that the operating environment stays within the specified -40°C to 125°C range and that wire wrap termination is compatible with the assembly process.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 845 series, which is characterized by high-temperature capabilities. The series offers various pin counts and configurations for card edge applications. The 845-092-525-504 specifically provides a 92-position solution with dual-edge contact access.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for verified substitute part numbers. Cross-reference specifications such as pin count, pitch, and termination method to ensure compatibility.
