Edgeboard Connectors Overview

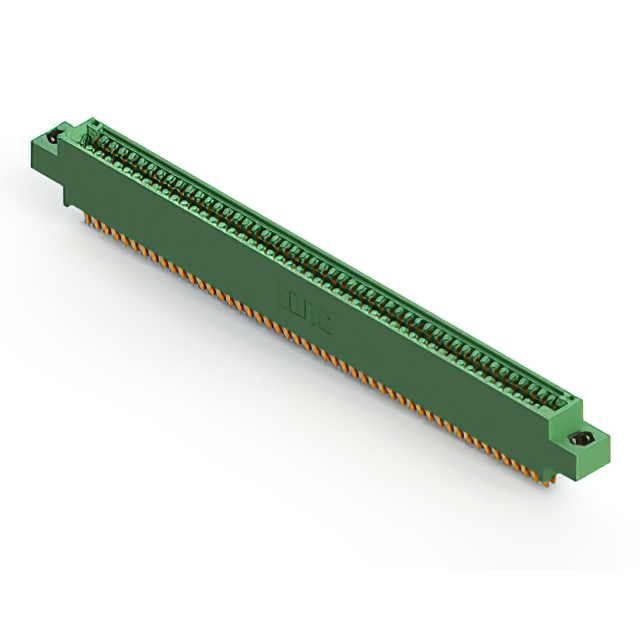

The EDAC Inc. 845-098-560-808 is a standard card edge connector from the 845 High Temp series, designed for reliable signal transmission in demanding environments. It features a dual female configuration with 98 positions arranged in two rows, utilizing a precise 2.54 mm (0.100 inch) contact pitch. The unit supports a maximum board thickness of 1.57 mm and employs solder pin termination for secure mounting. Constructed with copper alloy contacts featuring gold plating and a Diallyl Phthalate (DAP) insulator, it ensures durability and low contact resistance. The component is rated for a current capacity of 3 A per contact and operates within a temperature range of -40°C to +125°C, providing robust performance for high-temperature applications.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction suitable for elevated thermal environments
• Dual row female contact formation for dense signal routing
• Gold-plated copper alloy contacts ensuring stable electrical connectivity
• Panel mount installation style with straight orientation

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature reliability
• Communication equipment interfaces
• Automotive electronics modules
• Medical device signal connections
• Aerospace and defense instrumentation

Edgeboard Connectors Procurement Notes

Verify the complete part number including all suffixes to ensure correct contact code and tail length specifications. Confirm that the required board thickness matches the connector's design limits. Check for RoHS compliance status if environmental regulations apply to your specific project requirements. Ensure sourcing channels provide genuine EDAC components to guarantee performance integrity.

Edgeboard Connectors Selection Notes

Select this model when a dual-row card edge interface with 98 positions is required. Consider the 2.54 mm pitch for standard PCB layouts. Evaluate the high-temperature rating against your operational environment constraints. Verify that the panel mount style aligns with your mechanical assembly design and housing requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 845 High Temp series, which specializes in connectors capable of withstanding elevated temperatures. The series offers various position counts and contact configurations to suit different density needs. The 845-098-560-808 specifically addresses applications needing a high-density dual-row interface with robust thermal stability.

Edgeboard Connectors Replacement Considerations

Consult official EDAC documentation for direct cross-references or updated series replacements. Verify dimensional compatibility and electrical ratings before substituting with generic equivalents. Ensure any alternative maintains the same contact pitch and termination style.
