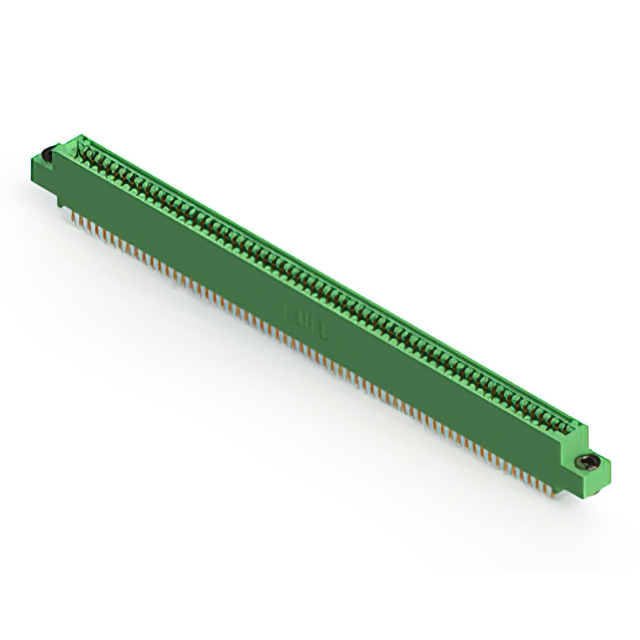

845-124-525-503

$87.53

Description：CONN EDGE DUAL FML 124POS 0.100
Series：845
Mfr：EDAC Inc.
Package：Bulk

SKU:b6fc855f82e1 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

845-124-525-503 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FML 124POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 845-124-525-503

Description：CONN EDGE DUAL FML 124POS 0.100
Series：845
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：62
Number of Positions：124
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 845-124-525-503

845-124-525-503

Edgeboard Connectors Overview

The EDAC Inc. 845-124-525-503 is a standard card edge connector featuring 124 positions with a 0.100 inch (2.54 mm) pitch. It utilizes gold-plated contacts and is designed for dual-edge card applications. The component supports panel mounting and employs a green insulator material. This connector belongs to the 845 series, which provides high-temperature insulation capabilities and multiple row options for diverse interface requirements.

Edgeboard Connectors Feature Summary

Dual-edge contact configuration for secure board insertion
Gold-plated terminals ensuring reliable signal transmission
High-temperature resistant insulator construction
Panel mount installation style for structural stability

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment interfaces
Automotive electronic module connections
Test and measurement instrument boards

Edgeboard Connectors Procurement Notes

Verify the specific pin count and termination type against the official datasheet before ordering. Confirm that the dual-edge design matches the target PCB slot geometry. Check for RoHS compliance status if required by project specifications. Ensure the operating temperature range aligns with the environmental conditions of the final assembly.

Edgeboard Connectors Selection Notes

Select this model when a high-density connection with 124 positions is required in a single row format. The 2.54 mm pitch ensures compatibility with standard board layouts. Consider the gold plating for corrosion resistance in demanding environments. Evaluate the panel mount requirement against available chassis space.

Edgeboard Connectors Part Context

This component is part of the EDAC 845 series, which specializes in card edge connectors. The series offers various position counts and termination styles. The 845 line is known for robust mechanical performance and high-temperature durability, suitable for industrial and commercial electronics applications requiring reliable interconnect solutions.
