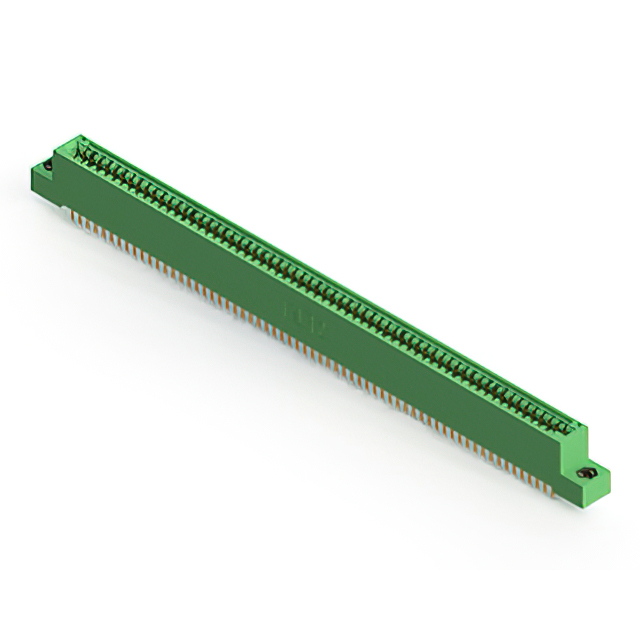

845-126-525-208

$88.53

Description：CONN EDGE DUAL FML 126POS 0.100
Series：845
Mfr：EDAC Inc.
Package：Bulk

SKU:dc46b98f5e62 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

845-126-525-208 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FML 126POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 845-126-525-208

Description：CONN EDGE DUAL FML 126POS 0.100
Series：845
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：63
Number of Positions：126
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 845-126-525-208

845-126-525-208

Edgeboard Connectors Overview

The EDAC Inc. model 845-126-525-208 is a standard card edge connector featuring a .100 inch (2.54mm) pitch. It is designed as a dual female mating configuration with 126 positions. The component belongs to the 845 series, which provides high-temperature insulator options and multiple mounting configurations for robust board-to-board or backplane connections.

Edgeboard Connectors Feature Summary

Dual female contact configuration for secure card insertion
High-temperature resistant insulator materials for thermal stability
Standard .100 inch pitch spacing for compatibility

Edgeboard Connectors Applications

Industrial control system backplanes
Telecommunications equipment interconnects
Aerospace instrumentation modules

Edgeboard Connectors Procurement Notes

Verify the specific termination style and mounting hardware requirements against the official datasheet before ordering. Confirm that the 126-position layout matches the target PCB footprint exactly. Ensure the selected variant aligns with the required operating temperature range specified in the product documentation.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-row interface is required. Consider the 845 series attributes such as available guide rails and panel mount options. Evaluate the mechanical retention needs of the application to determine if additional locking features are necessary beyond the standard connector design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 845 series, characterized by high-temperature performance and versatile mounting solutions. The series offers various position counts and termination types, allowing engineers to customize the connector assembly for specific environmental and mechanical constraints within electronic systems.
