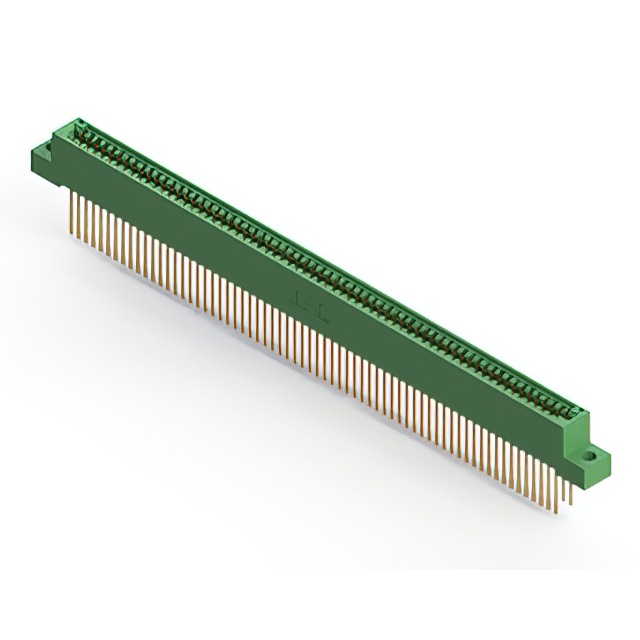

845-132-540-204 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FML 132POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 845-132-540-204
- Description：CONN EDGE DUAL FML 132POS 0.100
- Series：845
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：66
- Number of Positions：132
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 845-132-540-204
Edgeboard Connectors Overview
The EDAC Inc. 845-132-540-204 is a standard card edge connector from the 845 series, designed for high-temperature applications. It features 132 positions with a single row and a 0.100-inch (2.54 mm) pitch. The connector utilizes gold-plated copper alloy contacts and a diallyl phthalate (DAP) housing. It supports a current rating of 3 A and operates within a temperature range of -40°C to +125°C. The unit is intended for panel mounting in a vertical orientation.
Edgeboard Connectors Feature Summary
- High-temperature capability suitable for demanding environments
- Gold-plated contacts ensure reliable signal transmission
- Vertical panel mount design for secure installation
Edgeboard Connectors Applications
- Industrial control systems requiring robust connectivity
- Telecommunications equipment infrastructure
- Automotive electronics modules
Edgeboard Connectors Procurement Notes
Verify the specific part number against official EDAC documentation to confirm availability status, as distribution channels may vary. Ensure that the required contact plating and housing material specifications align with your environmental requirements. Cross-reference the pin count and pitch dimensions with your PCB layout constraints before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a single-row, 132-position connection is required for vertical panel mounting. Consider the 3 A current rating and DAP housing material for thermal stability. Verify compatibility with the target card edge thickness and ensure the vertical orientation fits the mechanical enclosure design constraints effectively.
Edgeboard Connectors Part Context
This connector belongs to the EDAC 845 series, which specializes in high-temperature card edge solutions. The series offers various position counts and mounting styles, utilizing durable materials like DAP and gold plating to maintain performance in harsh conditions across industrial and aerospace sectors.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for verified substitute part numbers within the same series or family. Ensure any replacement maintains identical electrical ratings, physical dimensions, and mounting configurations to guarantee system compatibility.
