846-005-526-607

Edgeboard Connectors Overview

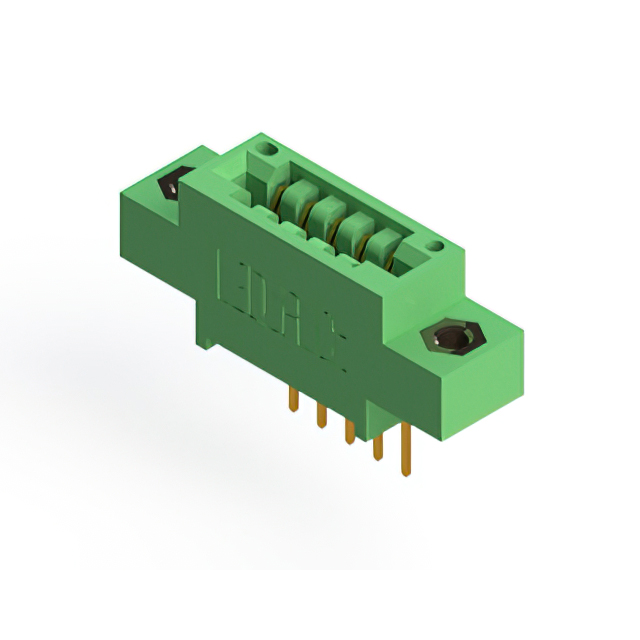

The EDAC Inc. 846-005-526-607 is a standard single-row card edge connector receptacle designed for high-temperature applications. It features five positions with a contact spacing of 3.175 mm (0.125 inches) and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inches). The unit utilizes gold-plated copper alloy contacts and a green diallyl phthalate insulator body. Rated for 3 A current, it supports panel mount installation at a vertical angle with solder pin termination.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using diallyl phthalate insulator material
• Gold-plated copper alloy contacts ensuring reliable signal transmission
• Vertical panel mount design compatible with 0.062 inch PCB thickness

Edgeboard Connectors Applications

• High-temperature electronic assemblies requiring robust card edge connections
• Industrial control systems utilizing standard profile circuit boards
• Panel-mounted interface modules in demanding thermal environments

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility with your system requirements. Ensure that the required PCB thickness matches the specified 1.57 mm tolerance. Confirm that the vertical panel mount orientation aligns with your mechanical design constraints before finalizing procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a single-row configuration with 3.175 mm spacing is required for high-temperature operation. The 5-position count suits low-pin-count interfaces. Verify that the solder pin termination method is compatible with your assembly process. Consider the vertical mounting style if space constraints require perpendicular board insertion relative to the panel.

Edgeboard Connectors Part Context

This component belongs to the EDAC 846 series, which specializes in high-temperature card edge connectors. The series offers various position counts and termination options while maintaining consistent dimensional standards for .125 inch spacing. The 846 series is engineered for durability in elevated thermal conditions where standard connectors may fail.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 846 series variants such as 846-005-558-101 or 846-005-541-602 for alternative termination styles like wire wrap or different plating options. Ensure any substitute maintains the same 3.175 mm pitch and 1.57 mm board thickness compatibility.
