846-012-559-607

Edgeboard Connectors Overview

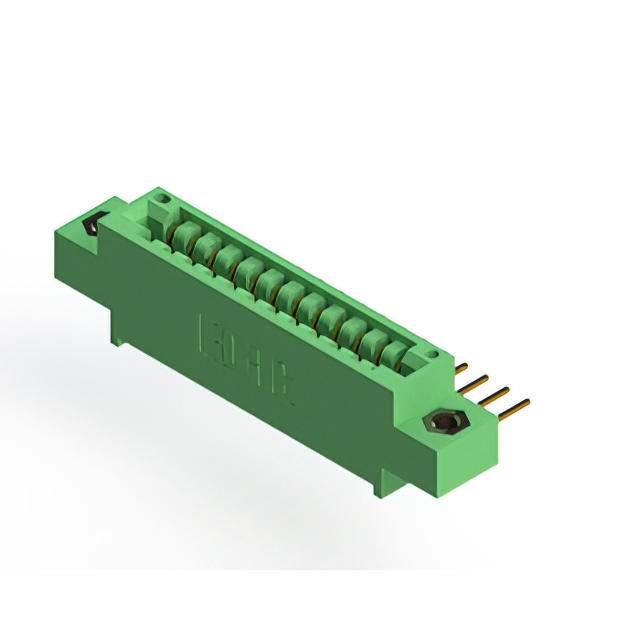

The EDAC Inc. part number 846-012-559-607 is a standard card edge connector receptacle belonging to the 846 High Temperature Series. It features a single row configuration with 12 positions and a contact spacing of 0.125 inches (3.18 mm). The connector utilizes gold-plated copper alloy contacts and a green diallyl phthalate (DAP) insulator. Designed for through-hole vertical mounting, it supports PCB thicknesses of 1.57 mm. The component is rated for a current capacity of 3 A and operates within a temperature range of -40°C to +125°C.

Edgeboard Connectors Feature Summary

• High-temperature resistant construction using DAP insulator material suitable for elevated thermal environments
• Gold-plated contacts ensure reliable signal transmission and corrosion resistance
• Vertical through-hole mounting style provides secure board attachment

Edgeboard Connectors Applications

• Industrial control systems requiring high-temperature stability
• Communication equipment interfaces
• Medical device internal connections
• Energy sector electronic assemblies

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official documentation to confirm exact termination type and mounting variations. Ensure compatibility with the target PCB stack-up and hole dimensions. Confirm RoHS compliance status directly with the supplier or datasheet as regulatory requirements may vary by production batch. Cross-reference the lead time information provided by authorized distributors prior to finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a single-row card edge interface with 12 positions is required. Verify that the 0.125-inch pitch aligns with the mating card edge design. Ensure the through-hole mounting style matches the assembly process capabilities. Confirm that the operating temperature range meets the environmental demands of the intended application scenario.

Edgeboard Connectors Part Context

This component is part of the EDAC 846 series, which specializes in high-temperature card edge connectors. The series offers various position counts and termination options to accommodate diverse board layout requirements. EDAC designs these connectors for durability in demanding industrial and commercial environments where standard connectors might fail due to thermal stress.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult the official EDAC catalog for cross-referencing similar series components if direct substitution is necessary.
