846-014-500-201

Edgeboard Connectors Overview

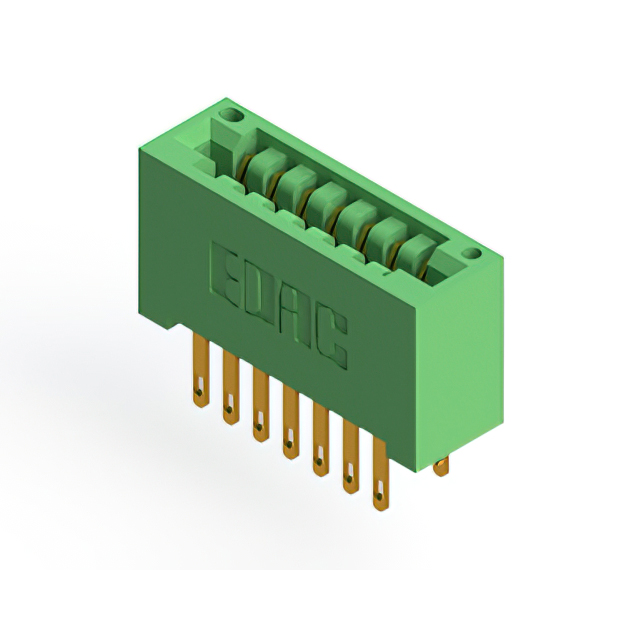

The EDAC Inc. 846-014-500-201 is a dual female card edge connector designed for high-temperature applications within the 846 series. It features a 0.125-inch (3.18mm) pitch and accommodates 14 positions across two rows. The component utilizes solder terminals for secure attachment to printed circuit boards. It is engineered to accept nominal PCB thicknesses of 0.062 inches (1.57mm). The unit operates reliably within a temperature range of -40°C to 125°C, ensuring stability in demanding electronic environments.

Edgeboard Connectors Feature Summary

• Dual female contact configuration supporting two-row card edge connections
• High-temperature rated construction suitable for elevated thermal conditions
• Accepts standard 0.062 inch nominal thickness printed circuit boards

Edgeboard Connectors Applications

• High-temperature industrial control systems
• Electronic modules requiring robust card edge interfacing
• Equipment operating in extreme thermal environments

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your design requirements. Ensure that the target application supports the specified operating temperature range and PCB thickness constraints. Cross-reference the terminal type and row configuration with existing board layouts to guarantee proper mechanical and electrical integration before procurement.

Edgeboard Connectors Selection Notes

Select this connector when dual-row female contacts are required for high-temperature reliability. The 0.125-inch pitch dictates specific board layout parameters. Consider the 125°C maximum operating limit when evaluating thermal management strategies. Confirm that the solder terminal style matches the assembly process and that the housing profile fits within the available spatial constraints of the enclosure design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 846 High Temperature Series, which provides connectors capable of withstanding elevated thermal conditions compared to standard industrial grades. The series offers various configurations including different row counts and termination styles. This specific model represents a dual-row variant optimized for applications where thermal stability and reliable card edge connection are critical performance factors.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 846 series variants with matching 14-position dual female specifications. Verify that any alternative maintains the identical 0.125-inch pitch and high-temperature rating. Ensure mechanical dimensions align with existing mounting holes and board thickness requirements to avoid redesign efforts.
