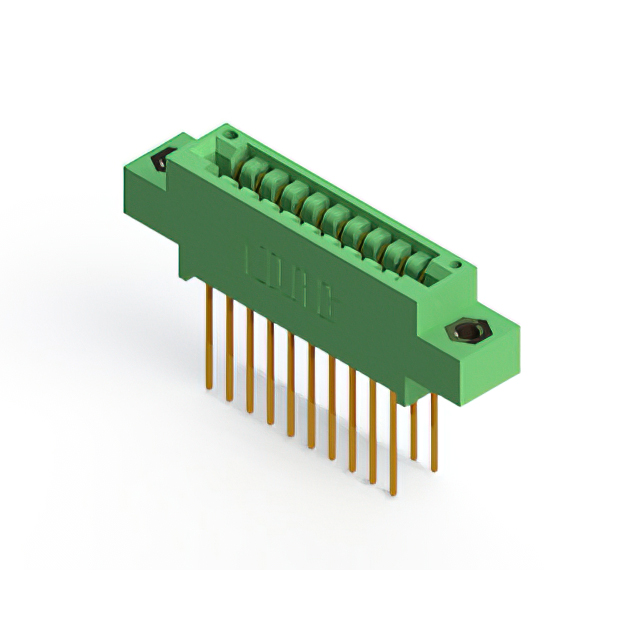

846-020-540-807 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 20POS 0.125. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 846-020-540-807
- Description：CONN EDGE DUAL FMALE 20POS 0.125
- Series：846
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：10
- Number of Positions：20
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.125" (3.18mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole
- Termination：Wire Wrap
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Threaded Insert, M3
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 846-020-540-807
Edgeboard Connectors Overview
The EDAC Inc. 846-020-540-807 is a high-temperature series card edge connector featuring 20 positions with a 0.125-inch (3.18mm) contact spacing. It utilizes a dual female configuration with gold-plated copper alloy contacts and a green DAP insulator. The component supports wire wrap termination using .025-inch square tails that are 0.750 inches long, arranged in a double-row formation. Designed for robust performance, it operates within a temperature range of -40°C to +125°C.
Edgeboard Connectors Feature Summary
- High-temperature capability suitable for demanding environments
- Gold-plated contacts ensure reliable signal transmission
- Wire wrap termination provides secure electrical connections
Edgeboard Connectors Applications
- Medical interconnect solutions
- Agricultural technology equipment
- Industrial control systems
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm tail length and termination type. Ensure compatibility with the target PCB thickness and mounting style requirements before ordering. Cross-reference the part number with authorized distributors to confirm current availability and lead times.
Edgeboard Connectors Selection Notes
Select this model when high-temperature stability and wire wrap termination are required. The 0.125-inch pitch accommodates larger board designs. Verify that the double-row configuration fits the available panel space. Confirm that the operating environment stays within the specified thermal limits.
Edgeboard Connectors Part Context
This component belongs to the EDAC 846 High Temperature Series, designed for durability in harsh conditions. The series offers various position counts and termination styles. This specific variant focuses on wire wrap connectivity for specialized assembly methods.
Edgeboard Connectors Replacement Considerations
Check for other 846-series variants with matching pin counts and spacing. Verify that alternative models support the same wire wrap tail dimensions and material specifications.
