846-024-520-804

Edgeboard Connectors Overview

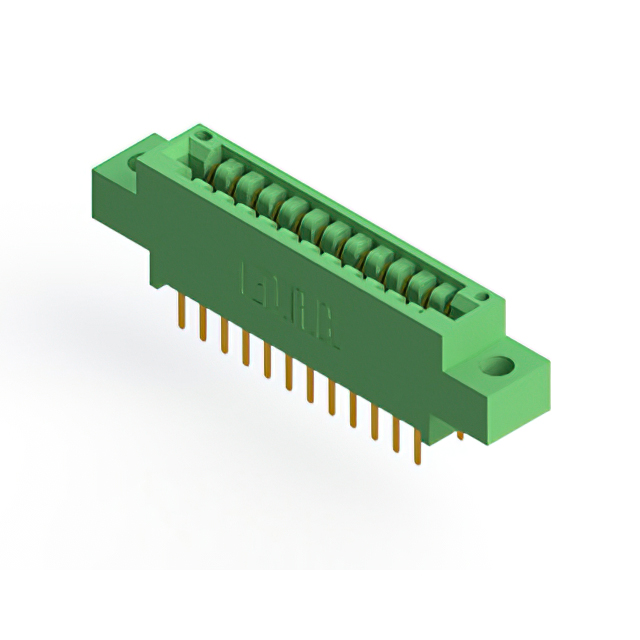

The EDAC Inc. 846-024-520-804 is a standard card edge connector receptacle from the 846 High Temp Series. It features 24 positions with a 3.18 mm (0.125 inch) contact spacing. The connector utilizes dual female contacts and gold plating for reliable signal transmission. Designed for through-hole vertical mounting, it accommodates PCBs with a thickness of 1.57 mm. The housing is constructed from green diallyl phthalate (DAP), providing durability in high-temperature environments.

Edgeboard Connectors Feature Summary

• Dual row female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensure low resistance and corrosion resistance
• High-temperature rated DAP insulator suitable for demanding thermal conditions

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics operating under elevated temperatures
• Communication equipment needing reliable signal pathways

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes to ensure correct contact type and mounting style. Confirm RoHS compliance status and specific temperature ratings against the official datasheet before integration. Cross-reference manufacturer specifications to validate compatibility with target PCB designs and operational requirements.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge solution with high-temperature capability is required. Ensure the mating card thickness matches the 1.57 mm specification. Verify that the 3.18 mm pitch aligns with the design layout. Consider the vertical through-hole mounting style for appropriate board space allocation.

Edgeboard Connectors Part Context

This model belongs to the EDAC 846 series, characterized by high-temperature performance and standard card edge connectivity. The series offers various position counts and mounting options. The 846-024 variant specifically provides a compact 24-position interface within this robust family of connectors designed for industrial reliability.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitutes. Ensure replacement parts maintain identical pitch, row count, and mounting style. Verify that alternative components meet the same high-temperature and material specifications.
