Edgeboard Connectors Overview

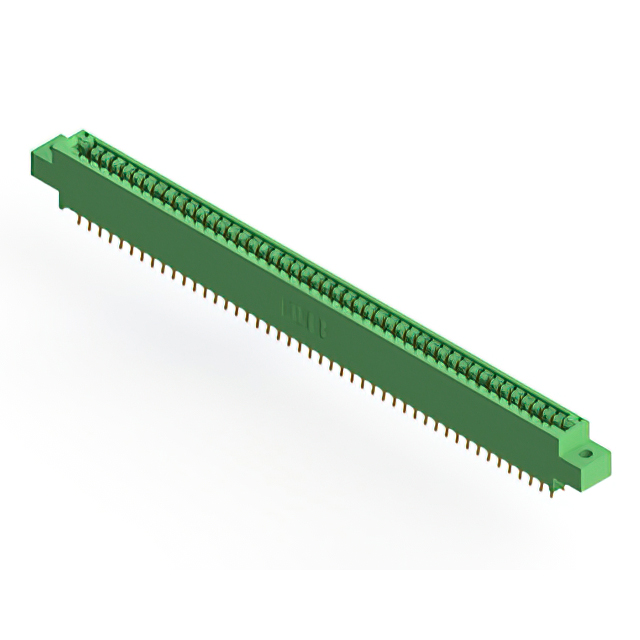

The EDAC Inc. 846-092-556-802 is a standard card edge connector from the 846 High Temp series, designed for reliable signal transmission in demanding environments. This component features a dual-edge female configuration with 92 positions and a contact spacing of 0.125 inches (3.18mm). The insulator is constructed from green material, providing visual identification and environmental resistance. Gold plating ensures low contact resistance and durability. It supports board thicknesses up to 1.57 mm and operates within a temperature range of -40°C to 125°C, making it suitable for high-temperature applications requiring robust interconnect solutions.

Edgeboard Connectors Feature Summary

• High-temperature rated construction for stable performance in thermal stress
• Gold-plated contacts ensure reliable conductivity and corrosion resistance
• Dual-edge female design accommodates double-sided card edge PCBs
• Green insulator provides clear visual identification and mechanical stability

Edgeboard Connectors Applications

• Medical interconnect systems requiring durable connections
• Agricultural technology equipment operating in harsh conditions
• Industrial control panels with high thermal exposure
• Communication infrastructure hardware
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify part number accuracy against official EDAC documentation before ordering. Confirm compatibility with target PCB stack-up and thickness specifications. Check RoHS compliance status if required by project regulations. Ensure storage conditions maintain connector integrity prior to assembly. Validate supplier authorization to guarantee genuine components.

Edgeboard Connectors Selection Notes

Select this model when high-temperature resilience and gold-plated reliability are critical. The 0.125-inch pitch suits standard card edge designs. Consider the 92-position count for complex signal routing needs. Verify panel mount or vertical orientation requirements match system constraints. Evaluate thermal management strategies given the 125°C operational limit.

Edgeboard Connectors Part Context

Part of the EDAC 846 High Temp series, focusing on durability in extreme conditions. Designed for professional industrial and specialized sector applications. Emphasizes long-term connection stability through premium materials and precise manufacturing tolerances.

Edgeboard Connectors Replacement Considerations

Consult EDAC technical support for direct cross-references. Verify pin count, pitch, and mounting style match exactly. Ensure substitute parts meet identical temperature ratings and plating specifications.

Edgeboard Connectors FAQ

What is the maximum operating temperature for this connector?

The connector is rated for operation up to 125°C.

Does this connector support double-sided PCBs?

Yes, the dual-edge female design allows connection to double-sided card edge boards.
