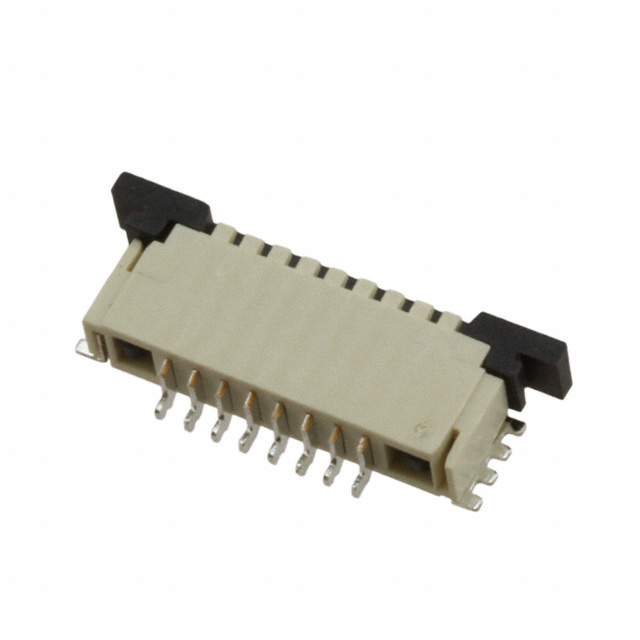

84953-8

84953-8 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN FPC TOP 8POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 84953-8

• Description：CONN FPC TOP 8POS 1MM R/A
• Series：-
• Mfr：TE Connectivity AMP Connectors
• Package：Tape & Reel (TR),Cut Tape (CT)
• Flat Flex Type：FPC
• Mounting Type：Surface Mount, Right Angle
• Connector/Contact Type：Contacts, Top
• Number of Positions：8
• Pitch：0.039" (1.00mm)
• Termination：Solder
• FFC, FCB Thickness：0.30mm
• Height Above Board：0.101" (2.56mm)
• Locking Feature：Slide Lock
• Cable End Type：Straight
• Contact Material：Phosphor Bronze
• Contact Finish：Tin
• Housing Material：Liquid Crystal Polymer (LCP), Glass Filled
• Actuator Material：Polyamide (PA), Nylon, Glass Filled
• Features：Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating：200V
• Operating Temperature：-40°C ~ 85°C
• Material Flammability Rating：UL94 V-0
