850-10-002-20-001101

Headers, Male Pins Overview

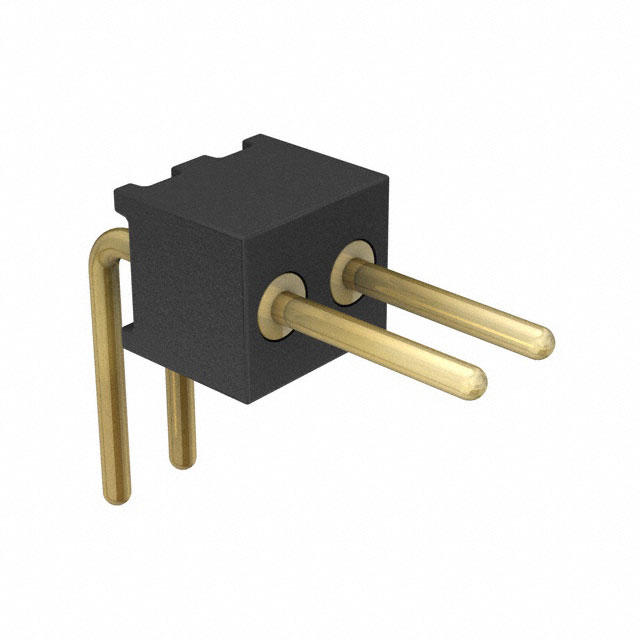

The Preci-Dip 850-10-002-20-001101 is a single-row right-angle pin header connector from the 850 series. It features a 1.27 mm (0.050 inch) pitch and provides two contact positions. The unit utilizes brass contacts with gold plating on both mating and tail surfaces, rated at 10.0 µin (0.25 µm). Designed for through-hole mounting, it supports a maximum current of 1A and a voltage rating of 150VDC. The insulating housing is constructed from glass-filled PCT polyester, offering UL94 V-0 flammability ratings and operational stability between -55°C and 125°C.

Headers, Male Pins Feature Summary

• Right-angle configuration facilitates compact board-to-board interconnections
• Gold-plated brass contacts ensure reliable signal transmission and corrosion resistance
• Glass-filled PCT insulation provides structural integrity and thermal stability

Headers, Male Pins Applications

• Board-to-board connections in electronic assemblies
• Signal routing in industrial control modules
• Interfacing in consumer electronics hardware

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer catalogs to confirm availability and compliance status. Ensure that the required contact count and pitch align precisely with the target PCB footprint. Cross-reference environmental certifications such as RoHS if applicable to the end product requirements.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for minimal contact counts. The 1.27 mm pitch suits dense layouts, while the gold plating offers superior conductivity compared to tin alternatives. Confirm that the mechanical height and thermal limits meet the system's design constraints.

Headers, Male Pins Part Context

This connector belongs to the Preci-Dip 850 series, which specializes in high-density, surface-mount and through-hole headers. The series is characterized by its robust construction and precise alignment capabilities, serving as a standard solution for modern electronic interconnect needs requiring reliability in varied environments.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 1.27mm pitch single-row right-angle headers with identical pin counts and gold plating specifications. Verify mechanical dimensions and electrical ratings before substitution.
