850-10-002-40-001101

Headers, Male Pins Overview

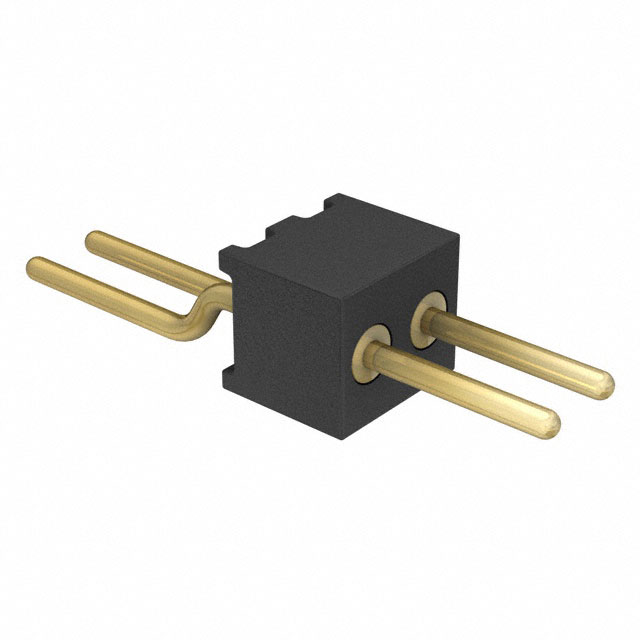

The Preci-Dip 850-10-002-40-001101 is a surface mount right-angle header connector from the 850 series. It features two positions with a 1.27 mm (0.050 inch) pitch. The connector utilizes gold-plated brass contacts and a black PCT insulation material rated UL94 V-0. It supports a maximum current of 1A and a voltage of 150V DC, operating within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Surface mount right-angle design for compact board integration
• Gold-plated contacts ensure reliable signal transmission
• High-temperature resistant PCT insulation material

Headers, Male Pins Applications

• Board-to-board interconnections
• Compact electronic assemblies requiring right-angle routing
• Consumer electronics with space constraints

Headers, Male Pins Procurement Notes

Verify the specific contact plating thickness and insulation material grade against the official datasheet before finalizing procurement. Ensure that the surface mount footprint matches the manufacturer's recommended land pattern to guarantee proper solder joint integrity during assembly processes.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for two signals. The 1.27 mm pitch suits dense layouts. Confirm that the 1A current rating meets circuit requirements and that the operating temperature range aligns with the environmental conditions of the target application.

Headers, Male Pins Part Context

This part belongs to the Preci-Dip 850 series, which offers various pin counts and mounting styles. The 850-10 suffix indicates a surface mount right-angle configuration. This specific model provides a minimal two-position solution within the broader family of rectangular connectors designed for high-density applications.

Headers, Male Pins Replacement Considerations

Consult official cross-reference lists for compatible substitutes. Verify that any alternative maintains the identical 1.27 mm pitch, right-angle orientation, and surface mount termination style to ensure mechanical and electrical compatibility.
