852-80-008-30-001101

Headers, Male Pins Overview

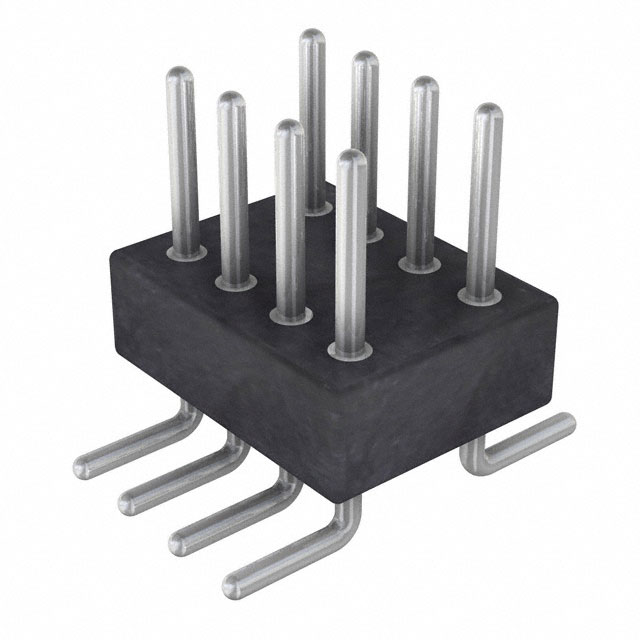

The Preci-Dip 852-80-008-30-001101 is a surface-mount header connector from the 852 series. It features 8 positions with a 1.27 mm (0.050 inch) pitch and two rows of male pins. The unit utilizes tin-plated brass contacts and a black PCT polyester insulator reinforced with glass fiber, rated UL94 V-0. Electrical ratings include 1A current and 150V DC voltage. Operating temperatures range from -55°C to 125°C.

Headers, Male Pins Feature Summary

• Surface-mount construction for automated PCB assembly
• Tin-plated brass contacts for reliable conductivity
• Glass-fiber reinforced PCT insulation for thermal stability

Headers, Male Pins Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Automated surface-mount manufacturing lines

Headers, Male Pins Procurement Notes

Verify the suffix '30' confirms surface-mount termination rather than through-hole variants. Confirm the '008' code matches the required eight-position count. Ensure compatibility with standard reflow soldering profiles for tin-plated terminals. Validate that the 1.27mm pitch aligns with the target PCB footprint design requirements.

Headers, Male Pins Selection Notes

Select this model when surface-mount technology is required for an eight-pin connection. The 1.27mm pitch suits high-density layouts compared to larger spacing options. Verify that the 1A rating meets circuit load requirements. Consider the 852 series mechanical locking style if push-pull retention is necessary for the application environment.

Headers, Male Pins Part Context

This component belongs to the Preci-Dip 852 series of rectangular connectors. The series offers various pin counts and mounting styles. This specific part number represents the eight-position surface-mount variant within the broader product family designed for compact electronic interconnect solutions.

Headers, Male Pins Replacement Considerations

Cross-reference other 852-series parts with identical pitch and row configuration. Verify that alternative suppliers offer matching tin-plated brass contact materials. Ensure replacement units maintain the same UL94 V-0 flammability rating and temperature specifications.
