852-80-094-20-001101

Headers, Male Pins Overview

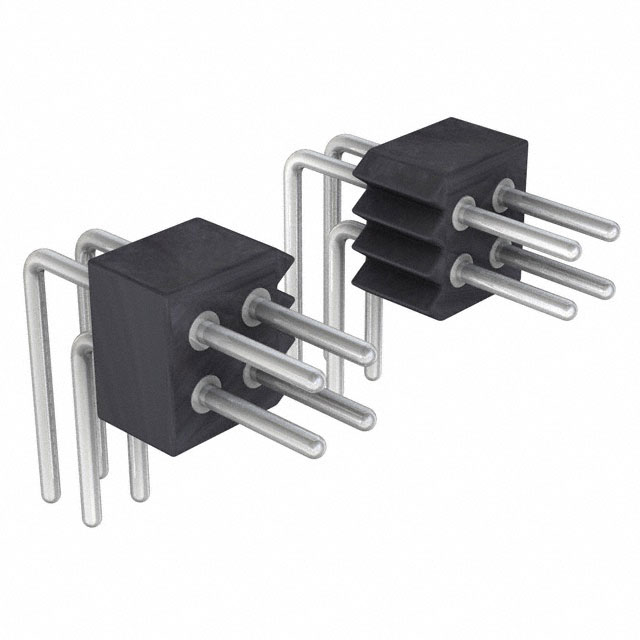

Preci-Dip part number 852-80-094-20-001101 is a right-angle pin header connector from the 852 series. It features 94 positions arranged in a double-row configuration with a 1.27 mm (0.050 inch) pitch. The connector utilizes through-hole termination and accepts male pins. Rated for 1A current and 150V DC, it operates within a temperature range of -55°C to 125°C. The housing is constructed from black PCT polyester reinforced with glass fiber, meeting UL94 V-0 flammability standards. Contacts are made of brass with tin plating.

Headers, Male Pins Feature Summary

• Right-angle design facilitates board-to-board connections with reduced profile height.
• Double-row configuration provides high-density connectivity in compact spaces.
• Tin-plated brass contacts ensure reliable electrical performance and corrosion resistance.
• Glass-fiber reinforced PCT insulation offers thermal stability and mechanical strength.

Headers, Male Pins Applications

• High-density electronic assemblies requiring board-to-board interconnects
• Industrial control systems utilizing through-hole mounting
• Consumer electronics with space-constrained internal layouts

Headers, Male Pins Procurement Notes

Verify the complete part number including suffixes to confirm specific packaging and lead times. Confirm that the required mating socket connectors match the 1.27 mm pitch and double-row specification. Ensure PCB footprint dimensions align with the specified contact length and insulation height parameters before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle, double-row header with 1.27 mm pitch is required. Consider the 1A current rating and 150V DC voltage limit for circuit compatibility. Evaluate the through-hole mounting style against available PCB assembly methods. Compare physical dimensions against enclosure constraints to ensure proper fit.

Headers, Male Pins Part Context

This connector belongs to the Preci-Dip 852 series, designed for applications demanding reliable signal transmission in dense configurations. The series supports various pin counts and row arrangements, offering flexibility for different board layouts. The 852 series is characterized by its robust construction and standardized dimensions, ensuring interchangeability within the product family.

Headers, Male Pins Replacement Considerations

Compatible mating sockets include part numbers such as 853-87-094-10-001101 and 853-87-094-30-001101. Verify that replacement headers maintain the same 1.27 mm pitch, double-row structure, and right-angle orientation to ensure mechanical and electrical compatibility.
