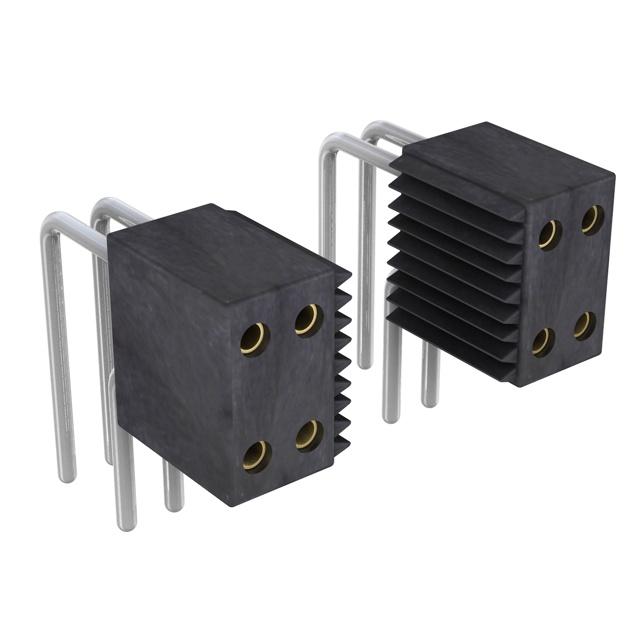

853-83-034-20-002101

853-83-034-20-002101 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Preci-Dip. Its product description is CONN SOCKET 34P 0.05 GOLD PCB RA. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 853-83-034-20-002101

• Description：CONN SOCKET 34P 0.05 GOLD PCB RA
• Series：853
• Mfr：Preci-Dip
• Package：Bulk
• Connector Type：Socket
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：34
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：29.5µin (0.75µm)
• Insulation Color：Black
• Insulation Height：0.174" (4.42mm)
• Contact Length - Post：0.126" (3.20mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：1A
• Voltage Rating：-
