8532-05L

$2.46

Description：FIXED IND 2.2UH 5.22A 13MOHM SMD
Series：8532
Mfr：Delevan
Package：Tape & Reel (TR)

SKU:947267e99181 Category: Fixed Inductors Brand: Delevan

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

8532-05L is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Delevan. Its product description is FIXED IND 2.2UH 5.22A 13MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for 8532-05L

Description：FIXED IND 2.2UH 5.22A 13MOHM SMD
Series：8532
Mfr：Delevan
Package：Tape & Reel (TR)
Type：-
Material - Core：Ferrite
Inductance：2.2 µH
Tolerance：±15%
Current Rating (Amps)：5.22 A
Current - Saturation (Isat)：4.3A
Shielding：Unshielded
DC Resistance (DCR)：13mOhm Max
Q @ Freq：-
Frequency - Self Resonant：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Inductance Frequency - Test：1 kHz
Mounting Type：Surface Mount
Package / Case：Nonstandard
Supplier Device Package：-
Size / Dimension：0.860" L x 0.320" W (21.84mm x 8.12mm)
Height - Seated (Max)：0.286" (7.26mm)

Fixed Inductors datasheet and documents for 8532-05L

8532-05L

Fixed Inductors Overview

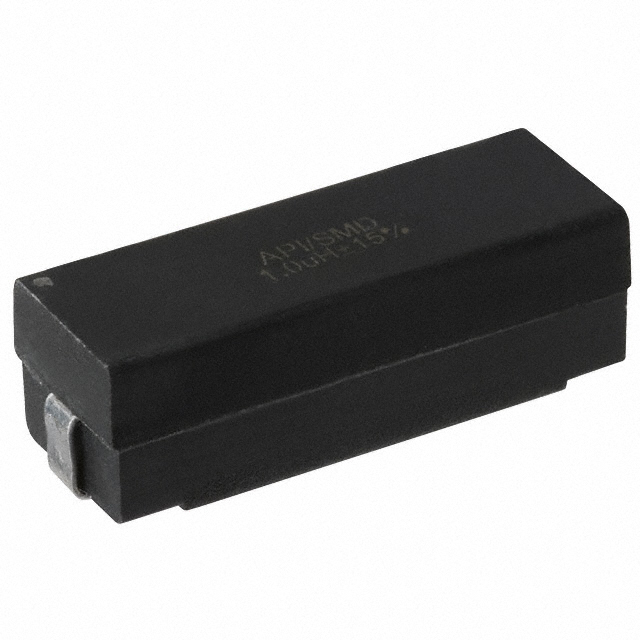

The Delevan 8532-05L is a surface-mount power inductor from the 8532/R series, designed for high-current applications. It features a nominal inductance of 2.2 µH with a tolerance of ±15%. The component supports a maximum DC current of 5.22 A and exhibits a maximum DC resistance of 13 mΩ. Constructed with a ferrite core and epoxy molded housing, it operates within a temperature range of -55 °C to +125 °C. The physical dimensions are 22.35 mm in length, 8.38 mm in width, and 7.26 mm in height.

Fixed Inductors Feature Summary

High current handling capability suitable for power supply filtering
Epoxy molded construction for mechanical stability
Ferrite core design for efficient magnetic performance

Fixed Inductors Applications

Power supply output filtering
DC-DC converter input/output stages
General purpose power inductor circuits

Fixed Inductors Procurement Notes

Verify component authenticity through authorized API Delevan channels or certified distributors. Confirm RoHS compliance status as historical data indicates non-compliance for this specific part number. Ensure ordering quantities align with standard reel packaging requirements specified by the manufacturer. Validate lead times directly with suppliers due to potential availability constraints.

Fixed Inductors Selection Notes

Select the 8532-05L when circuit designs require low DC resistance and high saturation current in a compact SMD footprint. Compare against alternative 8532 series variants based on specific inductance values and current ratings. Ensure thermal management strategies account for the 125 °C maximum operating temperature limit during continuous operation.

Fixed Inductors Part Context

This component belongs to the Delevan 8532/R series of high-power surface-mount inductors. The series utilizes ferrite cores and epoxy molding to provide robust performance in demanding power electronics environments. These components are engineered for reliability in industrial and commercial power conversion systems.
