857-008-545-102

Edgeboard Connectors Overview

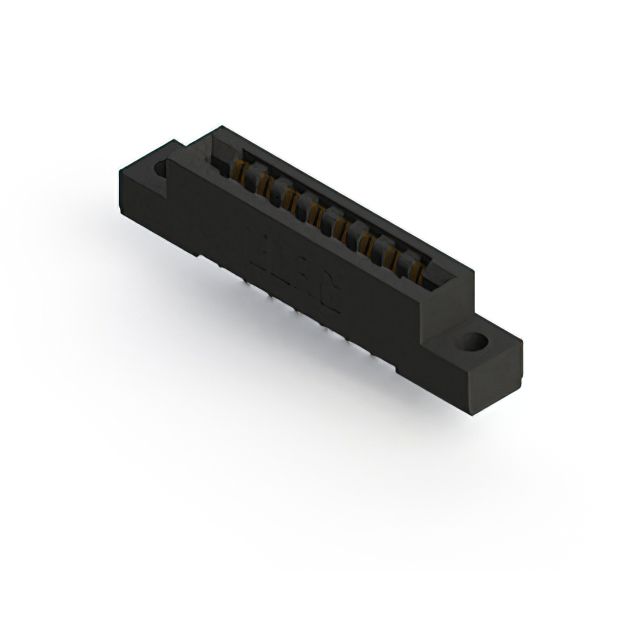

The EDAC Inc. 857-008-545-102 is a standard card edge connector featuring eight positions with a 3.96 mm pitch. It utilizes gold-plated copper alloy contacts housed in black polyphenylene sulfide (PPS). Designed for vertical panel mount installation, this single-row female connector accommodates a board thickness of 1.57 mm. The component supports wire wrap termination and operates within a temperature range suitable for high-temperature applications.

Edgeboard Connectors Feature Summary

• Constructed with durable polyphenylene sulfide housing for thermal stability
• Features gold-plated contacts to ensure reliable signal transmission
• Supports vertical panel mounting for secure integration

Edgeboard Connectors Applications

• High-temperature circuit board interconnections
• Panel-mounted electronic assemblies
• Industrial control system interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material specifications. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the wire wrap termination style aligns with the assembly process requirements. Cross-reference the RoHS status with current regulatory standards for the intended market.

Edgeboard Connectors Selection Notes

Select this model when a vertical, panel-mount solution is required for eight-position connections. The PPS housing makes it suitable for environments requiring higher thermal resistance compared to standard thermoplastics. Verify that the 3.96 mm pitch matches the design footprint. Consider the wire wrap termination method for the specific manufacturing workflow.

Edgeboard Connectors Part Context

This component belongs to the EDAC 857 series, which specializes in high-temperature card edge connectors. The series is designed for robust performance in demanding industrial and commercial applications. The 857 series maintains consistent dimensional standards across various position counts while offering specialized materials for thermal endurance.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified alternatives. Generic equivalents may not match the specific PPS material properties or gold plating requirements necessary for high-temperature reliability.
