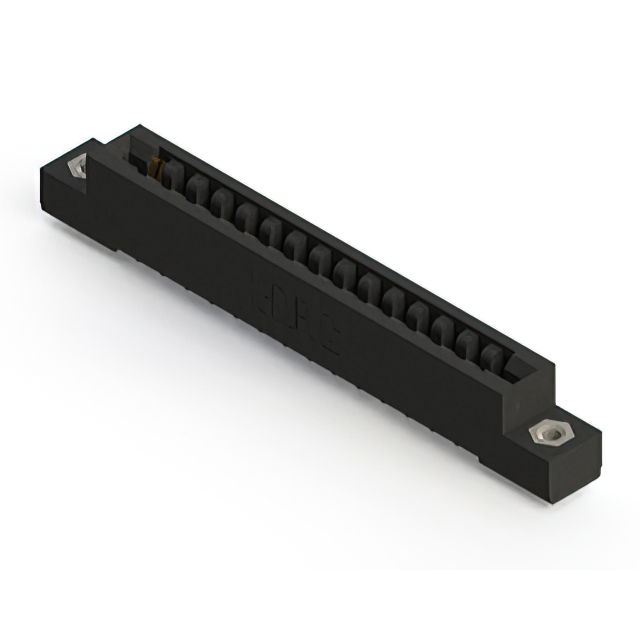

857-015-531-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 15POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 857-015-531-108
- Description：CONN EDGE SGL FMALE 15POS 0.156
- Series：857
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：15
- Number of Positions：15
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 857-015-531-108
Edgeboard Connectors Overview
The EDAC 857-015-531-108 is a vertical standard card edge connector featuring 15 positions in a single row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and supports a current rating of 5 A. The housing is constructed from black polyphenylene sulfide (PPS), while contacts are made from copper alloy with gold plating. Designed for panel mount installation, this receptacle accommodates board thicknesses up to 1.57 mm.
Edgeboard Connectors Feature Summary
- High-temperature resistant PPS housing material
- Gold-plated copper alloy contacts for reliable signal transmission
- Vertical mounting orientation for space-efficient integration
Edgeboard Connectors Applications
- Industrial control systems requiring high-temperature stability
- Telecommunications equipment interfaces
- Medical device circuit board connections
Edgeboard Connectors Procurement Notes
Verify the specific suffix '108' against official EDAC documentation to confirm exact contact plating thickness and housing color specifications. Ensure compatibility with target PCB edge thickness limits before procurement. Confirm RoHS compliance status through the latest manufacturer datasheet or component notification records.
Edgeboard Connectors Selection Notes
Select this component when a vertical, single-row card edge interface is required with a 3.96 mm pitch. The PPS housing makes it suitable for environments demanding thermal resistance. Verify that the 5 A current rating meets the application's electrical load requirements and that the panel mount style aligns with the mechanical assembly design.
Edgeboard Connectors Part Context
This part belongs to the EDAC 857 series of standard card edge connectors. The series offers various position counts and mounting styles. The 857-015-531-108 specifically denotes a 15-position variant with defined pitch and housing characteristics within the broader EDAC interconnection portfolio.
Edgeboard Connectors Replacement Considerations
Consult EDAC technical support for verified substitute part numbers. Cross-reference pitch, position count, and mounting style with alternative manufacturers only if official equivalents are documented.
