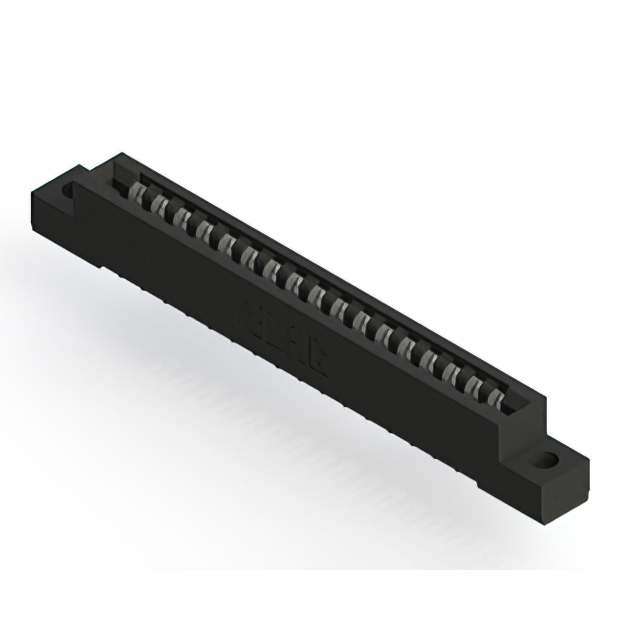

857-017-454-102 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 34POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 857-017-454-102
- Description：CONN EDGE DUAL FMALE 34POS 0.156
- Series：857
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：17
- Number of Positions：34
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Semi Bellows
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 857-017-454-102
Edgeboard Connectors Overview
The EDAC Inc. 857-017-454-102 is a standard high-temperature card edge receptacle featuring 17 positions with a 3.96 mm pitch. Designed for panel mount installation, it utilizes gold-plated copper alloy contacts and a Polyphenylene Sulfide (PPS) housing. The component supports a board thickness of 1.57 mm and offers a current rating of 5 A. It operates within a temperature range of -40°C to +125°C and provides an insulation resistance of 5 GOhms.
Edgeboard Connectors Feature Summary
- High-temperature capability utilizing Polyphenylene Sulfide housing material
- Gold-plated copper alloy contacts for reliable signal transmission
- Panel mount vertical installation configuration
Edgeboard Connectors Applications
- Industrial control systems requiring high-temperature stability
- Communication equipment interfaces
- Medical device circuit connections
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to ensure correct contact plating and orientation specifications. Confirm that the required board thickness matches the 1.57 mm design parameter. Check regional availability as distribution status may vary by location.
Edgeboard Connectors Selection Notes
Select this model when a 17-position connection is required in high-thermal environments. Ensure the mating card edge thickness aligns with the specified 1.57 mm dimension. Verify that the 5 A current rating meets the circuit requirements and that panel mounting is feasible for the enclosure design.
Edgeboard Connectors Part Context
This component belongs to the EDAC 857 series of standard card edge connectors. The series is characterized by robust construction suitable for demanding applications. The 857 series includes various position counts and mounting styles, providing versatile interconnection solutions for PCB-to-panel interfaces.
Edgeboard Connectors Replacement Considerations
Cross-reference part numbers within the EDAC 857 series for alternative position counts or mounting angles. Verify compatibility with existing tooling and board layouts before substituting similar components from other manufacturers.
