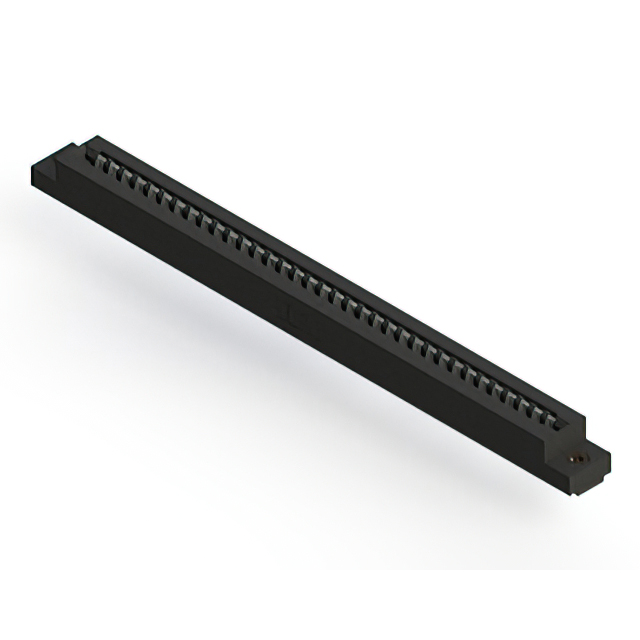

857-035-431-108

$100.24

Description：CONN EDGE SGL FML 35POS 0.156
Series：857
Mfr：EDAC Inc.
Package：Bulk

SKU:7cb21993c6f4 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

857-035-431-108 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FML 35POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 857-035-431-108

Description：CONN EDGE SGL FML 35POS 0.156
Series：857
Mfr：EDAC Inc.
Package：Bulk
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：35
Number of Positions：35
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.156" (3.96mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Tin
Contact Finish Thickness：-
Contact Type：Semi Bellows
Color：Black
Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
Operating Temperature：-40°C ~ 125°C

Edgeboard Connectors datasheet and documents for 857-035-431-108

857-035-431-108

Edgeboard Connectors Overview

The EDAC Inc. model 857-035-431-108 is a high-temperature card edge connector receptacle from the 857 series. It features 35 positions with a 3.96 mm pitch and supports a board thickness of 1.57 mm. Designed for panel mount installation, this vertical connector utilizes gold-plated copper alloy contacts and a polyphenylene sulfide housing. The component is rated for 5 A current and offers reliable performance in demanding thermal environments.

Edgeboard Connectors Feature Summary

High-temperature resistant construction suitable for elevated thermal conditions
Gold-plated contacts ensure stable electrical connectivity and corrosion resistance
Polyphenylene sulfide housing provides robust mechanical stability and insulation

Edgeboard Connectors Applications

Industrial control systems requiring durable interconnects
Telecommunications equipment operating in varied environmental conditions
Medical devices necessitating reliable signal transmission
Energy sector instrumentation and monitoring hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating thickness and material specifications. Ensure compatibility with the target PCB board thickness of 1.57 mm before integration. Confirm that the vertical panel mount style aligns with the enclosure design requirements. Check for any recent product change notifications regarding material composition updates.

Edgeboard Connectors Selection Notes

Select this component when high-temperature stability and reliable signal integrity are critical. The 3.96 mm pitch accommodates standard card edge designs while maintaining sufficient spacing. Consider the 5 A current rating for power distribution needs within the application. Verify that the vertical orientation fits the available spatial constraints in the assembly.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 857 series, which specializes in high-temperature card edge solutions. The series is engineered for durability in harsh environments where standard connectors may fail. EDAC focuses on providing robust interconnect technologies for industrial and specialized applications requiring long-term reliability.
