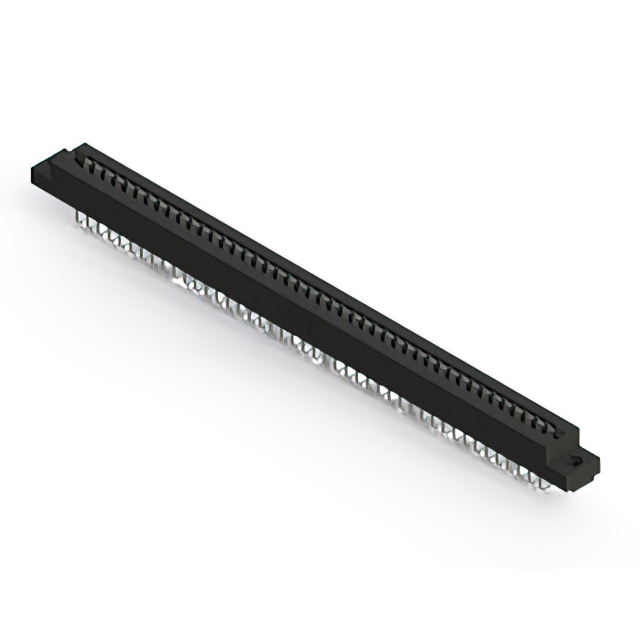

857-044-458-104 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FML 44POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 857-044-458-104
- Description：CONN EDGE SGL FML 44POS 0.156
- Series：857
- Mfr：EDAC Inc.
- Package：Bulk
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：44
- Number of Positions：44
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.156" (3.96mm)
- Read Out：Single
- Features：-
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Tin
- Contact Finish Thickness：-
- Contact Type：Semi Bellows
- Color：Black
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.156" (3.96mm) Dia
- Operating Temperature：-40°C ~ 125°C
Edgeboard Connectors datasheet and documents for 857-044-458-104
Edgeboard Connectors Overview
The EDAC Inc. 857-044-458-104 is a single-row card edge connector featuring 44 positions with a 0.156-inch (3.96mm) pitch. It utilizes female contacts with tin plating and is housed in black thermoplastic insulation. Designed for board-edge mounting, the connector supports card thicknesses ranging from 0.054 to 0.070 inches. The unit operates within a temperature range of -40°C to 125°C and complies with RoHS3 standards.
Edgeboard Connectors Feature Summary
- Single-row configuration with 44 contact positions
- Female contact type with tin plating
- Board-edge mounting style
- High-temperature rated insulation
Edgeboard Connectors Applications
- Industrial control systems
- Telecommunications equipment
- Consumer electronics modules
- Medical device interfaces
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against the manufacturer's official catalog to confirm contact termination and insulator material specifications. Ensure the selected variant matches the required card thickness and mounting orientation. Confirm compliance with current environmental directives such as RoHS3 before finalizing procurement orders.
Edgeboard Connectors Selection Notes
Select this component when a single-row interface with 44 positions is required. Verify that the 0.156-inch pitch aligns with the PCB layout. Confirm the tin-plated contacts are suitable for the application environment. Check that the operating temperature range meets system requirements.
Edgeboard Connectors Part Context
This part belongs to the EDAC 857 series of standard card edge connectors. The series offers various row counts and position options. Connectors in this family typically feature high-temperature insulators and multiple mounting configurations for diverse electronic applications.
Edgeboard Connectors Replacement Considerations
Consult the EDAC 307/357 Ordering Guide for potential substitutes. Verify compatibility regarding pitch, row count, and contact type before substitution.
