Edgeboard Connectors Overview

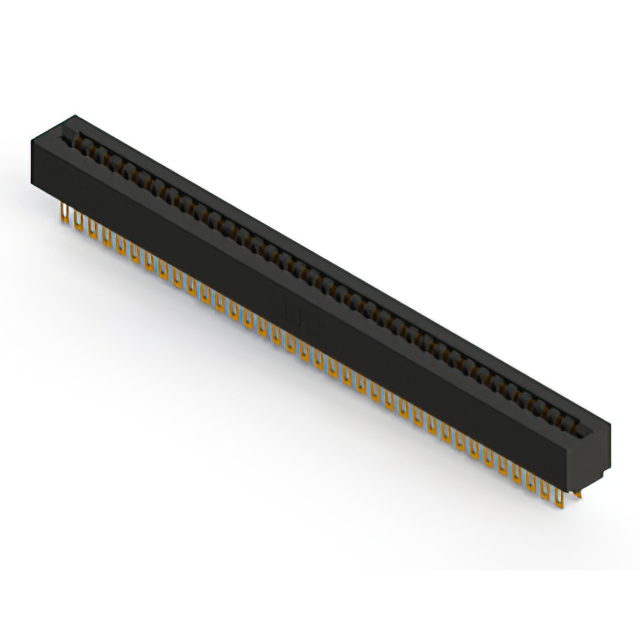

The EDAC Inc. part number 857-072-500-201 is a high-temperature card edge connector from the 807/857 series. It features a dual female configuration with 72 positions and a contact spacing of 0.156 inches. The component is designed for board thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm). This connector serves as an interconnect solution for various industrial and computing applications requiring reliable signal transmission.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card insertion
• High-temperature rated construction suitable for demanding environments
• Compatible with standard card thickness specifications

Edgeboard Connectors Applications

• Computing systems
• Industrial control equipment
• Communications networks

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer lead time, which may be approximately nine weeks, before finalizing procurement plans. Confirm that the required card thickness falls within the specified 0.054 to 0.070 inch range to ensure mechanical compatibility. Ensure that the application environment supports the high-temperature rating of the 857 series components.

Edgeboard Connectors Selection Notes

Select this component when a dual female card edge connector with 72 positions is required. The 0.156-inch pitch must align with the mating card design. Consider the high-temperature capability if the operating environment exceeds standard thermal limits. Verify that the housing material and contact plating meet the electrical and environmental requirements of the specific system design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 807/857 series of high-temperature card edge connectors. The series provides interconnect solutions for rack and panel applications. EDAC Inc. manufactures these components for global distribution channels and OEMs in sectors such as medical, aerospace, and clean technology, emphasizing quality assurance and rigorous inspection standards.

Edgeboard Connectors Replacement Considerations

The part number 887-072-500-201 is listed in related documentation as a similar high-temperature card edge connector. Verify mechanical dimensions and electrical specifications before substituting. Ensure that any alternative component matches the 72-position count and dual female configuration.
