860-10-044-10-001101

Headers, Male Pins Overview

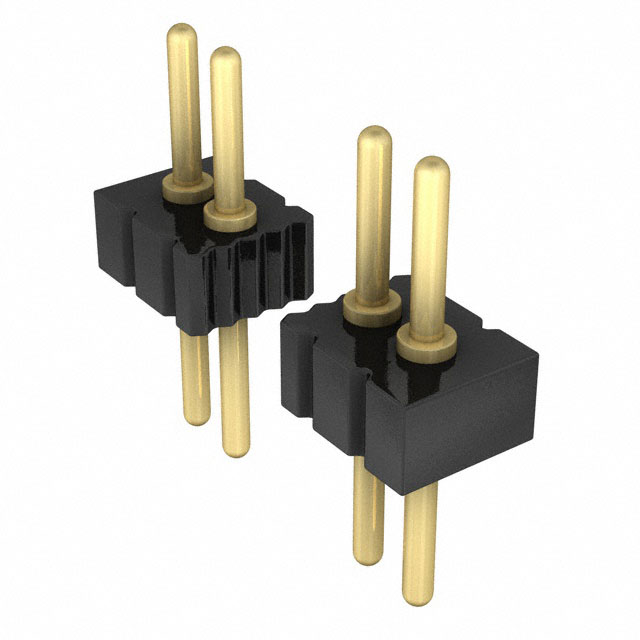

The Preci-Dip 860-10-044-10-001101 is a vertical board-to-board header connector featuring a 1.00mm pitch and 44 positions in a single row. It utilizes through-hole termination with solder tails for secure PCB mounting. The contacts are made of brass with gold plating, rated at 1A current and 150VDC voltage. The housing is constructed from glass-reinforced PCT material, black in color, and meets UL94 V-0 flammability standards. Operating temperature ranges from -55°C to 125°C.

Headers, Male Pins Feature Summary

• Low-profile design suitable for space-constrained applications
• Gold-plated contacts ensure reliable signal transmission
• Push-pull locking mechanism provides secure mating

Headers, Male Pins Applications

• Medical devices
• Industrial equipment
• Automotive electronics
• Aerospace and defense systems

Headers, Male Pins Procurement Notes

Verify the specific pin count and pitch requirements against the target PCB layout before ordering. Confirm that the through-hole solder tail dimensions align with the manufacturing process capabilities. Ensure compatibility with mating connectors within the 860/861 series family. Check for any environmental certifications required by the end-product specifications.

Headers, Male Pins Selection Notes

Select this component when a 1.00mm pitch is required for high-density interconnects. Consider the 1A current rating for power distribution needs. The vertical orientation and push-pull lock are key factors for assembly efficiency and mechanical stability. Evaluate the low-profile height constraints against available clearance in the final enclosure design.

Headers, Male Pins Part Context

This part belongs to the Preci-Dip 860 series, designed for board-to-board connections. The series offers various pin counts and pitches to accommodate different density requirements. The 860-10 variant specifically denotes the 1.00mm pitch configuration. It is part of a broader ecosystem of compatible headers and sockets.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 1.00mm pitch headers from the same manufacturer series, such as the 861 series variants. Ensure that any replacement maintains the same contact length, insulation height, and locking mechanism type to preserve mechanical fit and electrical performance.
