Product Detailed Parameters

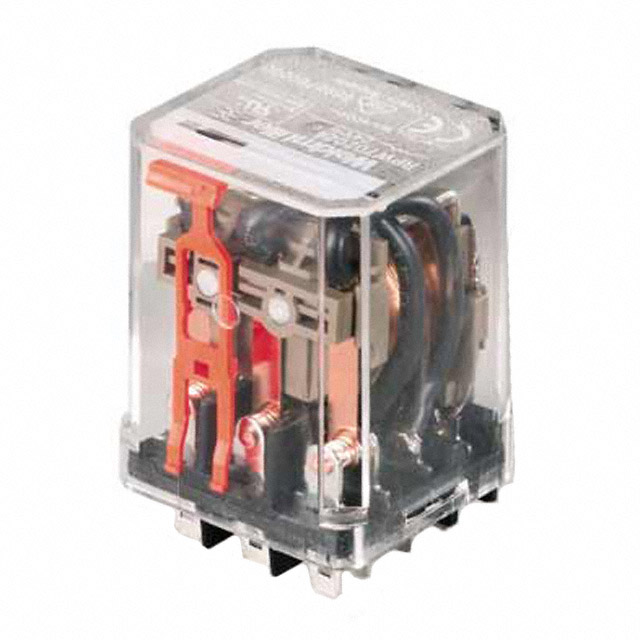

- Description：RELAY GEN PURPOSE DPDT 16A 230V
- Series：RPW
- Mfr：Weidmüller
- Package：Bulk
- Mounting Type：Socketable
- Coil Voltage：230VAC
- Contact Form：DPDT (2 Form C)
- Contact Rating (Current)：16 A
- Switching Voltage：440VAC - Max
- Load - Max Switching：7040VA
- Coil Current：10.1 mA
- Coil Type：Non Latching
- Features：-
- Termination Style：Plug In, Quick Connect - 0.187" (4.7mm)
- Seal Rating：-
- Coil Insulation：-
- Must Operate Voltage：184 VAC
- Must Release Voltage：69 VAC
- Operating Temperature：-45°C ~ 60°C
- Contact Material：Silver Cadmium Oxide (AgCdO)
- Approval Agency：-
- Relay Type：General Purpose
- Grade：-
- Qualification：-
- Operate Time：15 ms
- Release Time：10 ms
