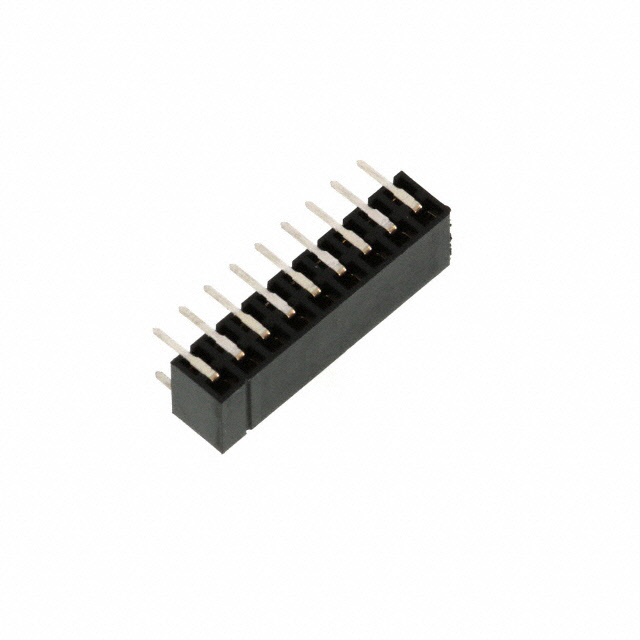

872641852 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is CONN RCPT 18P 0.079 GOLD PCB R/A. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for 872641852
- Description：CONN RCPT 18P 0.079 GOLD PCB R/A
- Series：Milli-Grid 87264
- Mfr：Molex
- Package：Tube
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board or Cable
- Number of Positions：18
- Number of Positions Loaded：All
- Pitch - Mating：0.079" (2.00mm)
- Number of Rows：2
- Row Spacing - Mating：0.079" (2.00mm)
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：15.0µin (0.38µm)
- Insulation Color：Black
- Insulation Height：0.157" (4.00mm)
- Contact Length - Post：0.100" (2.54mm)
- Operating Temperature：-55°C ~ 105°C
- Material Flammability Rating：-
- Contact Finish - Post：Tin
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A
- Voltage Rating：125VAC
Headers, Receptacles, Female Sockets datasheet and documents for 872641852
Headers, Receptacles, Female Sockets Overview
The Molex 872641852 is a PCB receptacle connector belonging to the Milli-Grid series. It features a 2-row, 18-position configuration with a 2.00mm pitch. Designed for through-hole mounting in a right-angle orientation, it utilizes side entry for mating. The contacts are female sockets plated with 0.38µm of gold over nickel to ensure reliable signal transmission. This component is lead-free and supplied in tube packaging.
Headers, Receptacles, Female Sockets Feature Summary
- Right-angle through-hole mounting design
- Side-entry mating interface
- Gold-plated female socket contacts
Headers, Receptacles, Female Sockets Applications
- Personal computer internal connections
- Industrial control systems
- Automotive electronics modules
Headers, Receptacles, Female Sockets Procurement Notes
Verify that the specific part number matches the required 18-position, 2-row specification. Confirm the right-angle orientation and side-entry compatibility with the mating header. Ensure the application environment supports the standard operating conditions defined by the manufacturer's datasheet.
Headers, Receptacles, Female Sockets Selection Notes
Select this component when a low-profile, right-angle connection is required for board-to-board or cable-to-board applications. The 2.00mm pitch allows for dense circuit layouts. Consider the side-entry feature if space constraints prevent top-down insertion during assembly.
Headers, Receptacles, Female Sockets Part Context
This connector is part of the Milli-Grid family, designed for high-density interconnects. It provides a compact solution for signal routing in constrained spaces. The series is widely used in computing and industrial sectors requiring robust, reliable connections.
Headers, Receptacles, Female Sockets Replacement Considerations
Compatible headers include Molex part numbers within the same Milli-Grid series with matching 2.00mm pitch and 18-position count. Verify mechanical dimensions and plating specifications before substitution.
