872675050

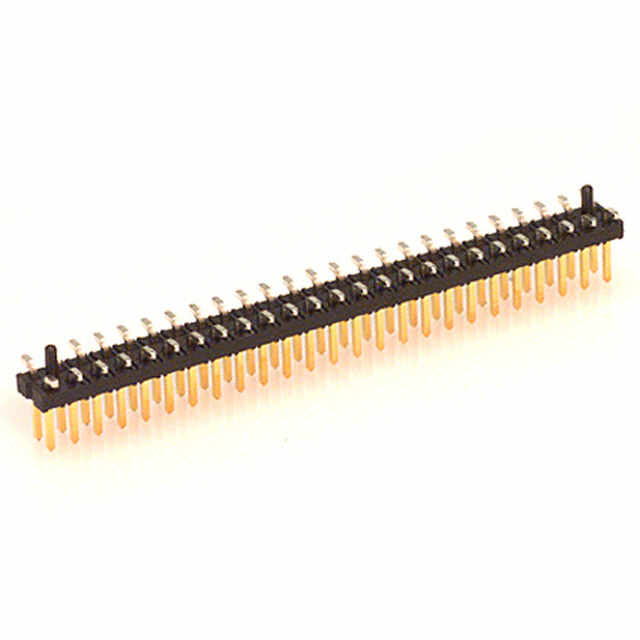

872675050 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER SMD 50POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 872675050

• Description：CONN HEADER SMD 50POS 2MM
• Series：Milli-Grid 87267
• Mfr：Molex
• Package：Tube
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：50
• Number of Rows：2
• Row Spacing - Mating：0.079" (2.00mm)
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Unshrouded
• Mounting Type：Surface Mount
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.150" (3.81mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.059" (1.50mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：15.0µin (0.38µm)
• Contact Finish - Post：Tin-Lead
• Contact Material：Phosphor Bronze
• Insulation Material：Polyamide (PA), Nylon
• Features：Board Guide
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 872675050
